Product Highlights

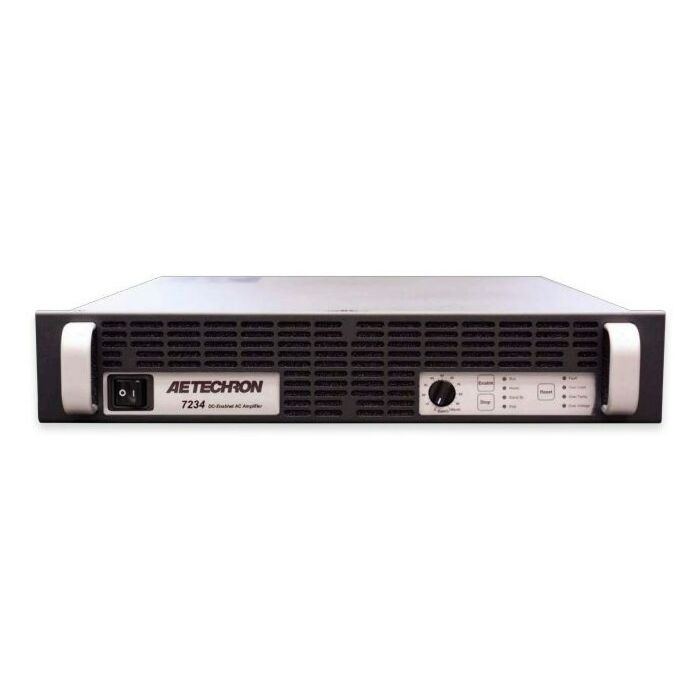

AE Techron's 7234 amplifier is a capable, versatile, and reliable EMC lab partner. This powerful amplifier/battery simulator provides up to 28A of long-term DC current with surges of up to 50A and can slew voltages at rates of up to 100+ V/us. It is load-tolerant, able to drive most inductive, capacitive, and resistive loads easily. The feature set of the 7234 allows it to meet or exceed the requirements of 1000+ Automotive and Aviation DC Conducted Susceptibility Standards Tests.
The 7234 is light enough to be hand-carried from one test location to another, rugged enough to tolerate being bounced around on a cart, and able to be powered from standard 120V/230V AC wall power. These features, along with the 7234s powerful performance, make it possible to turn virtually any bench or desk into a competent test location. Protection circuitry protects the amplifier from input overloads, improper output connection (including shorted and improper loads), overtemperature, over-current, and supply voltages that are too high or low.
Specifications for the AE TECHRON 7234 Audio Amplifier & Battery Simulator Include:
| AC Power (up to 20 kHz) |
900 watts RMS |
| Small Signal (8V p-p) |
700 kHz |
| DC Power |
28A at 13.5 VDC |
| Slew Rate |
100+ V/us |
