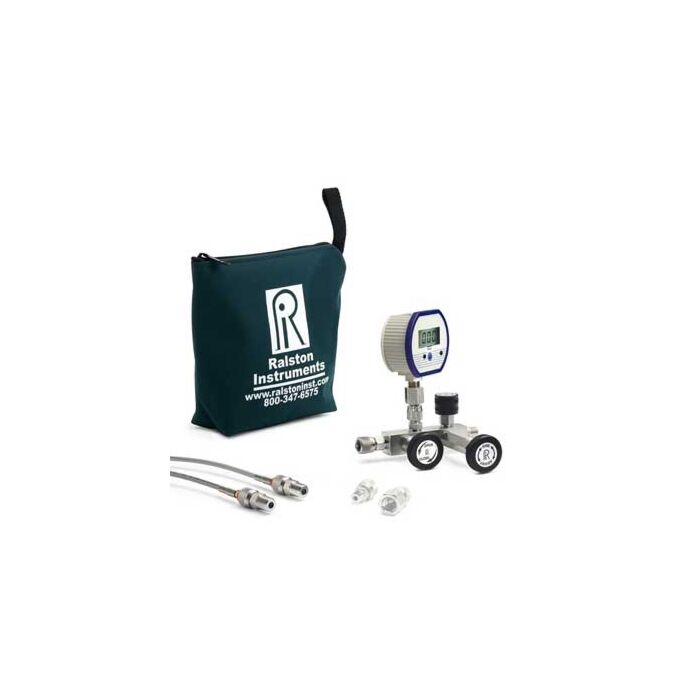

Ralston Instruments QSCM-5KPSIG-D Manifold, 5000 PSIG Digital Gauge Kit

Product Highlights

• Perform static pressure calibrations using nitrogen with included calibration manifold, pressure gauge and hoses
• Pressure Range 0 to 5000 psi (0 to 345 bar)
• Gauge Pressure Range 0 to 5000 psig
• Temperature range 0 to 130 °F (-18 to 54 °C)
• Gauge Temperature range -4 to 185 °F (-20 to 85 °C)
• Construction Stainless Steel
• Seal materials Buna-N, Delrin, Teflon
• Weight 2.63 lb (1.2 kg)
• Dimensions H: 7.88 in (20.02 cm) x W: 5 in (12.70 cm) x D: 3.78 in (9.60 cm)

Each Unit Includes

• Assembly - QSCM Assembly (QSCM)
• Gauge - 0-5000 psig Digital Pressure Gauge (GAUD-5000)
• Gauge Adapter - 1/4" female NPT x female QT, no check-valve, brass (QTHA-2FBA)
• Hose - Quick-test hose, S.S. hose ends, 20 ft (6.10 m) long (QSQS-HOS-20ft)
• Hose - Quick-test hose, S.S. hose ends, 2 ft (61 cm) long (QSQS-HOS-2ft)
• Hose Adapter - 1/4" male NPT x male QT, no check-valve, S.S. (QTHA-2MS0)
• Hose Adapter - 1/4" male NPT x male QT, no check-valve, S.S. (QTHA-2MS0)
