Panametrics PT900 Portable Ultrasonic Flow Meter for Liquids
Order #: PT9-SYS
Mfg #: PT9-SYS
The TransPort PT900 is the latest generation of portable clamp-on fow meter from Panametrics line of ultrasonic meters. It capitalizes on the ruggedness and superior performance of its predecessor, the TransPort PT878, but delivers a whole new level of intuitive and user-friendly capability based on today's technology.
Product Highlights

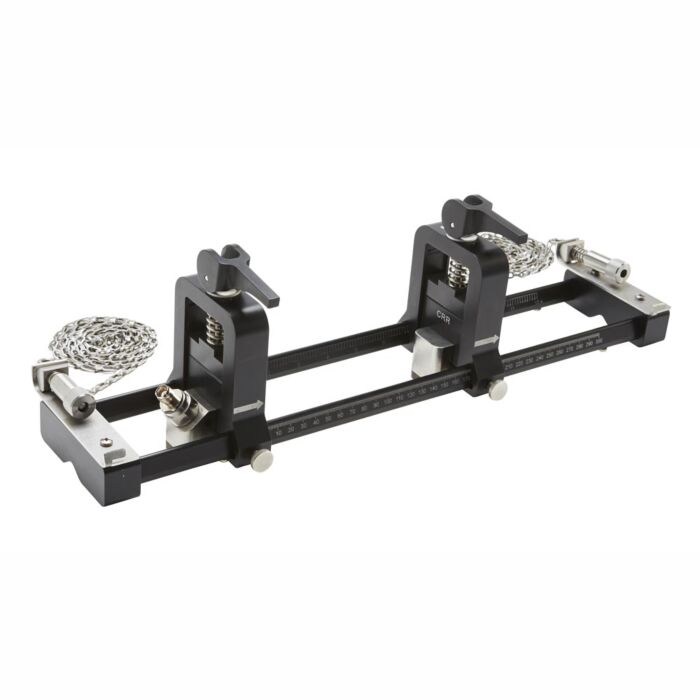

The PT900 maintains the same high performance as the PT878, but features a total redesign of the fl ow transmitter, clamping fixture and user interface. Key improvements include a redesigned fixture and a streamlined user interface on an Android tablet.
Why Buy the PT900 from Transcat? Inventory. Selection. Price.
TransPort PT900 Makes Your Job So Much Easier
The PT900 has undergone the most involved voice of the user effort to date for GE’s flow products. Several years of learning about how people use portable flow meters and what they want and need while making flow rate measurements have influenced the PT900’s design. GE validated this learning and modified the design approach by sharing initial concepts and early prototypes with users. The result? The best portable flow meter needs to be versatile, easy to install, intuitive to use and capable of making reliable measurements even in the most difficult applications.
Operation and PerformanceFluid TypesLiquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles Flow MeasurementPatented Correlation Transit-TimeTM mode Pipe SizesStandard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request Pipe Wall ThicknessUp to 3 in. (76.2 mm) Pipe MaterialAll metals and most plastics Accuracy
Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors. Repeatability±0.2% of reading Range (Bidirectional)0.1 to 40 ft/s (0.03 to 12.19 m/s) Response TimeUp to 2 Hz Measurement ParametersVelocity, Volume, Mass, Energy, Total Flow Channels1 or 2 channels |
Flow TransmitterEnclosureIP65 rating Specifications
Analog Inputs4-20 mA (qty 2) Analog Output4-20 mA (qty 1) Digital OutputPulse (Totalizer), Frequency, Alarm (qty 1) Digital Communication
Battery
Operating Temperature-20 to 55°C (-4 to 131°F) Electronics Classifications
|
|
 |
 |
|

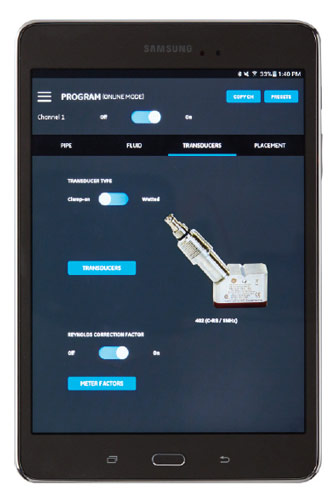

User InterfaceDisplayTablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution Dimensions
Battery Life>12 hours of continuous use Battery Charger100 to 250 VAC (50/60 Hz) Operating Temperature0 to 50°C (32 to 122°F) Communication with Flow TransmitterBluetooth |
Software Application (PT900 APP)Intuitive, Swipe Screen Interface
LanguagesEnglish, Arabic, Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish Installing the PT900 APPObtain the PT900 APP from:
|
|
-
Panametrics PT9-SD SD card including PT900 tablet app and manualsSD card including PT900 tablet app and manualsOrder #: PT9-SD
Mfg #: PT9-SD
Availability:This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs. -
Panametrics PT9-EXT Pair 100 feet extension cable (for C-RR transducers only)Pair 100 feet extension cable (for C-RR transducers only)
Order #: PT9-EXT
Mfg #: PT9-EXT
Availability:In stockSpecial Price $278.85 Regular Price $588.00 -
Panametrics PT9-DIO Digital and discrete input & out cable, PT900 transmitterDigital and discrete input & out cable, PT900 transmitter
Order #: PT9-DIO
Mfg #: PT9-DIO
Availability:This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs. -

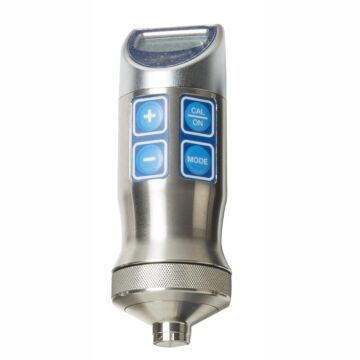

Panametrics PT9 Pipe wall thickness gaugePipe wall thickness gauge
Order #: PT9-TG
Mfg #: PT9-TG
Availability: Ships in 3-4 weeks$3,920.00 -

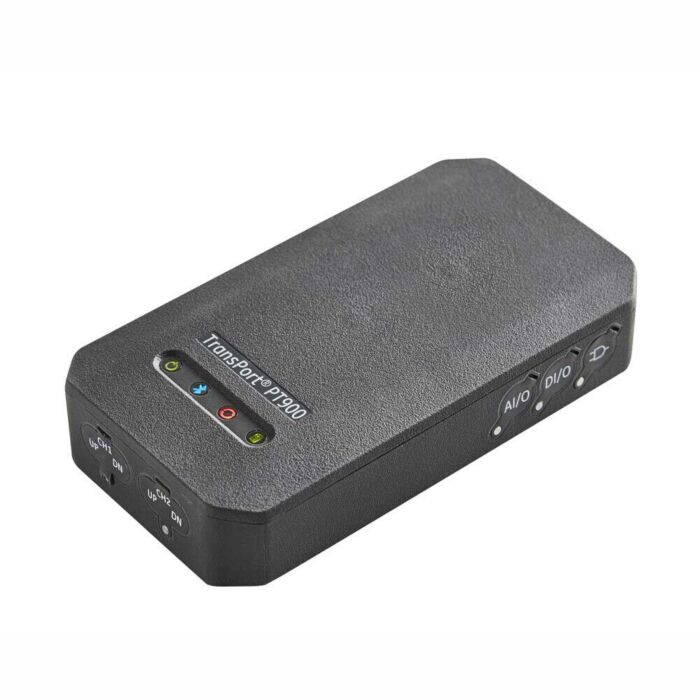

Panametrics PT9-SPARE Replacement PT900 transmitter with mounting strapsReplacement PT900 transmitter with mounting straps
Order #: PT9-SPARE
Mfg #: PT9-SPARE
Availability: Ships in 3-4 weeks$12,390.00 -
Panametrics PT900 Android based touch screen tablet & case for PT900Android based touch screen tablet & case for PT900
Order #: PT9-TABLET-01
Mfg #: PT9-TABLET-01
Availability:In stock$1,162.00 -
Panametrics PT900 BATTERY Spare Rechargable Battery PT900 TransmitterSpare Rechargable Battery PT900 Transmitter
Order #: PT9-BAT
Mfg #: PT9-BAT
Availability:In stock$840.00 -
Panametrics PT9 Power adapter from line power to PT900 transmitterPower adapter from line power to PT900 transmitter
Order #: PT9-POWERADAPTER
Mfg #: PT9-POWERADAPTER
Availability:This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.
Accuracy±1% of reading (2in/50mm or greater pipe sizes)
±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profi le (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fl uid, temperature range, pipe centricity among other factors.
| TransPort PT900 Specifications | |
| Operation and Performance | |
| Fluid Types | Liquids: acoustically conductive fl uids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles |
| Flow Measurement | Patented Correlation Transit-Time™ mode |
| Pipe Sizes | Standard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request |
| Pipe Wall Thickness | Up to 3 in. (76.2 mm) |
| Pipe Material | All metals and most plastics |
| Repeatability | ±0.2% of reading |
| Range (Bidirectional) | 0.1 to 40 ft/s (0.03 to 12.19 m/s) |
| Response Time | Up to 2 Hz |
| Measurement Parameters | Velocity, Volume, Mass, Energy, Total Flow |
| Channels | 1 or 2 channels |
| Flow Transmitter | |
| Enclosure | IP65 rating |
| Specifications |
|
| Analog Inputs | 4-20 mA (qty 2) |
| Analog Output | 4-20 mA (qty 1) |
| Digital Output | Pulse (Totalizer), Frequency, Alarm (qty 1) |
| Digital Communication |
|
| Battery | Type: Lithium Ion (high-energy, rechargeable) Life (continuous operation): 18-20 hours Life (power saver mode): >4 days Charger: 100 to 240 VAC (50/60/Hz) Charging Time: Up to 3 hours (from 0% to 100%) |
| Operating Temperature | -20 to 55°C (-4 to 131°F) |
| Electronics Classifi cations |
|
| User Interface | |
| Display | Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution |
| Dimensions |
|
| Battery Life | >12 hours of continuous use |
| Battery Charger | 100 to 250 VAC (50/60 Hz) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Communication with Flow Transmitter | Bluetooth® |
| Software Application (PT900 APP) | |
| Intuitive, Swipe Screen Interface |
|
| Installing the PT900 APP | Obtain the PT900 APP from:
|
| Languages | English, Arabic, Chinese (Simplifi ed), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish |
| Clamp-On Transducers | |
| Temperature Range* |
|
| Mounting |
|
| PT9 Transducer Cables |
|
