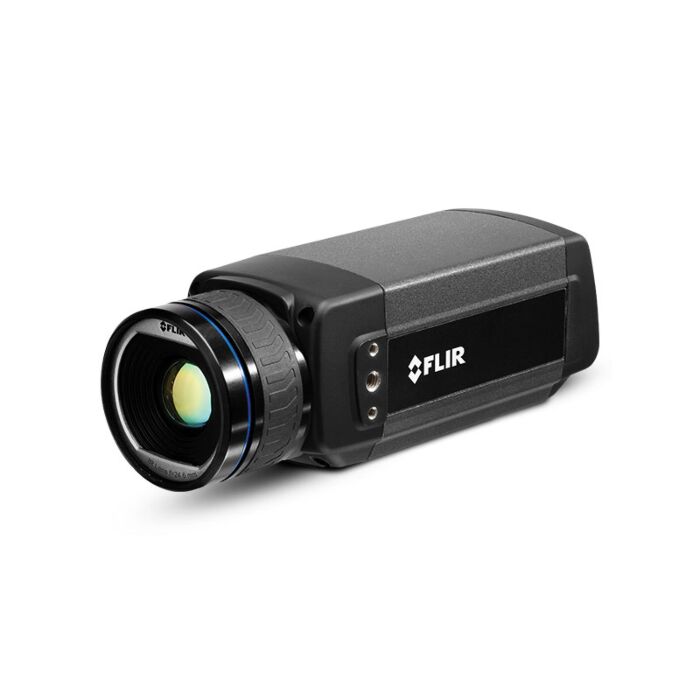

Used FLIR A615 Thermal Vision Imaging Camera, 25 degree Lens, 50Hz
Thermal Vision Imaging Camera 25 degree Lens (50Hz)
Order #: A615-USED
Mfg #: A615-USED
$19,283.67
Used FLIR A615 Thermal Vision Imaging Camera, 25 degree Lens, 50Hz
Thermal Vision Imaging Camera 25 degree Lens (50Hz)
Order #: A615-USED
Mfg #: A615-USED
$19,283.67
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
Product Highlights
The FLIR A615 is an easy-to-control, affordable, and compact thermal imaging camera for condition monitoring, process control/quality assurance, and fire prevention. This camera can be fully controlled by a PC, and is Plug and Play with third-party machine vision software such as National Instruments, Cognex, Matrox, MVtec, and Stemmer Imaging.
EXCELLENT IMAGE QUALITY
The FLIR A615 features a 640 x 480 pixel microbolometer that detects temperature differences as small as 50 mK, for accuracy at longer distances.
16-BIT TEMPERATURE LINEAR OUTPUT
Measure temperatures in non-contact mode using any third-party software thanks to 16-bit temperature linear output.
HIGH-FREQUENCY STREAMING
Stream full-frame 16-bit images at 50 Hz, or in windowed mode as high as 200 Hz, for high-speed processes.
| Digital I/O connector type | 6-pole jackable screw terminal |
| Digital Inputs | 2 opto-isolated, 10-30 VDC |
| Digital Output Purpose | Output to ext. device (programmatically set) |
| Digital Outputs | 2 opto-isolated, 10-30 VDC, max 100 mA |
| EMC | EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission) |
| f-number | 1.0 |
| Image Frequency | 50 Hz (100/200 Hz with windowing) |
| Thermal Sensitivity/NETD | < 0.05°C @ +30°C (86°F) / 50 mK |
| Accuracy | ±2°C or ±2% of reading |
| Communication & Data Storage | |
|---|---|
| Digital I/O connector type | 6-pole jackable screw terminal |
| Digital I/O isolation voltage | 500 VRMS |
| Digital I/O supply voltage | 12/24 VDC, max 200 mA |
| Digital input purpose | Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read) |
| Digital Inputs | 2 opto-isolated, 10-30 VDC |
| Digital Output Purpose | Output to ext. device (programmatically set) |
| Digital Outputs | 2 opto-isolated, 10-30 VDC, max 100 mA |
| Ethernet | Control and image |
| Ethernet Communication | TCP/IP socket-based FLIR proprietary and GenICam protocol |
| Ethernet Connector Type | RJ-45 |
| Ethernet Image Streaming | 16-bit 640 x 480 pixels at 50 Hz, 16-bit 640 x 240 pixels at 100 Hz, 16-bit 640 x 120 pixels at 200 Hz (Signal linear, Temperature linear, Radiometric GigE Vision and GenICam compatible) |
| Ethernet Protocols | TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | Gigabit Ethernet |
| USB | Control and image |
| USB - Communication | TCP/IP socket-based FLIR proprietary |
| USB - Connector Type | USB Mini-B |
| USB - Image Streaming | 16-bit 640 x 480 |
| USB - Protocols | TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| USB - Standard | USB 2 HS |
| Imaging & Optical | |
| Camera size excl lens (L x W x H) | 203 x 73 x 75 mm (8.0 x 2.9 x 3.0 in.) |
| Detector Pitch | 17 µm |
| Detector Time Constant | Typical 8 ms |
| Field of view (FOV) | 15° x 11° (19° diagonal) |
| FLIR Screen-EST Mode | No |
| f-number | 1.0 |
| Focal Length | 41.3 mm (1.63 in.) |
| Focus | Automatic or manual (built in motor) |
| Image Frequency | 50 Hz (100/200 Hz with windowing) |
| IR Resolution | 640 x 480 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.50 m (1.64 ft.) |
| Spatial resolution (IFOV) | 0.41 mrad |
| Thermal Sensitivity/NETD | < 0.05°C @ +30°C (86°F) / 50 mK |
| Measurement & Analysis | |
| Accuracy | ±2°C or ±2% of reading |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Camera size (L x W x H) | 222 x 73 x 75 mm (8.7 x 2.9 x 3.0 in.) |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| External Optics & Windows Correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement Corrections | Global object parameters |
| Object Temperature Range | -20 to +150°C +100 to +650°C +300 to +2000°C |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| General | |
| Contents | Hard transport case or cardboard box, Thermal imaging camera with lens, Utility CD-ROM, Calibration certificate, Ethernet™ cable, USB cable (FLIR A615), Mains cable, Power cable (pig-tailed), Power supply, Printed Getting Started Guide, Printed Important Information Guide, User documentation CD-ROM, 6-pole screw terminal (mounted on camera) |
| Housing material | Aluminium |
| Packaging Size | 360 x 180 x 550 mm (14.2 x 7.1 x 21.7 in.) |
| Environmental & Certifications | |
| EMC | EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission) |
| Encapsulation | IP 30 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (77 to 104°F) |
| Operating Temperature Range | -15°C to +50°C (+5°F to +122°F) |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to +70°C (-40 to 158°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
| External Power Connector Type | 2-pole jackable screw terminal |
| External Power Operation | 12/24 VDC, 24 W absolute max |
| Voltage | Allowed range 10-30 VDC |
