Used Tektronix RSA5126B Real Time Signal Analyzer, 1Hz to 26.5GHz
Real Time Signal Analyzer, 1Hz to 26.5GHz

Order #: RSA5126B-USED

Mfg #: RSA5126B-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$79,798.67

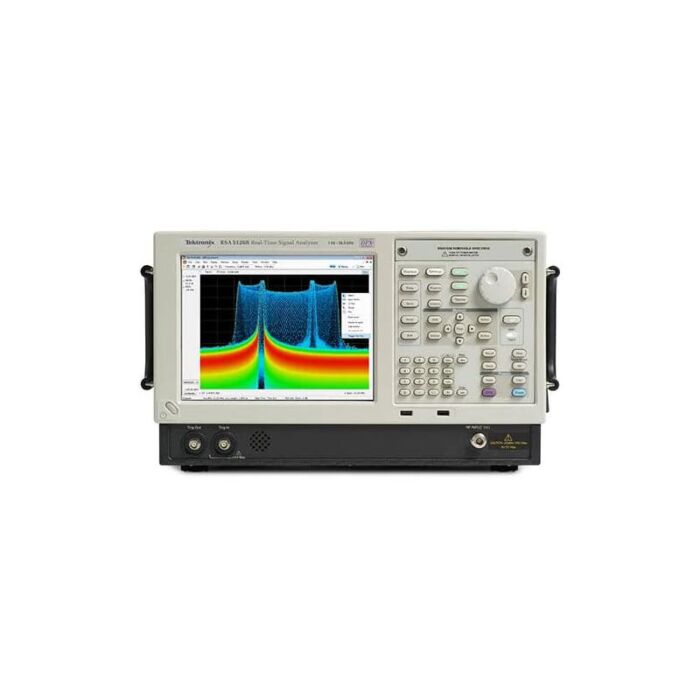

Used Tektronix RSA5126B Real Time Signal Analyzer, 1Hz to 26.5GHz

Real Time Signal Analyzer, 1Hz to 26.5GHz

Order #: RSA5126B-USED

Mfg #: RSA5126B-USED

$79,798.67

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

Applications include:

  • Wideband radar and pulsed RF signals
  • Broadband satellite and microwave backhaul links
  • Long Term Evolution (LTE), Cellular
  • EMC/EMI pre-compliance and troubleshooting

Real Time Spectrum Analyzer (1 Hz - 26.5 GHz)

The Tektronix RSA5000 Series Real Time Signal Analyzers replace conventional instruments, offering the measurement confidence and functionality you demand for everyday tasks. The RSA5000 Series offers industry-leading real time specifications and includes best minimum signal duration for 100% probability of intercept and best real time dynamic range. With the RSA5000 Series instruments, you get the functionality of a high-performance spectrum analyzer, wideband vector signal analyzer, and the unique trigger-capture-analyze capability of a real-time spectrum analyzer - all in a single package.

High performance spectrum and vector signal analysis, and much more

The RSA5000 Series replaces conventional high-performance signal analyzers, offering the measurement confidence and functionality you demand for everyday tasks. A +17 dBm TOI and -157 dBm/Hz DANL at 2 GHz gives you the dynamic range you expect for challenging spectrum analysis measurements. All analysis is fully preselected and image free. You never have to compromise between dynamic range and analysis bandwidth by 'switching out the preselector'.

A complete toolset of power and signal statistics measurements are standard, including Channel Power, ACLR, CCDF, Occupied Bandwidth, AM/FM/PM, and Spurious measurements. Available Phase Noise and General Purpose Modulation Analysis measurements round out the expected set of high-performance analysis tools.

But, just being an excellent mid-range signal analyzer is not sufficient to meet the demands of today's hopping, transient signals.

The RSA5000 Series will help you to easily discover design issues that other signal analyzers may miss. The revolutionary DPX spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design, or instantly displaying a fault when it occurs. Once a problem is discovered with DPX, the RSA5000 Series spectrum analyzers can be set to trigger on the event, capture a contiguous time record of changing RF events, and perform time-correlated analysis in all domains. You get the functionality of a high-performance spectrum analyzer, wideband vector signal analyzer, and the unique trigger-capture-analyze capability of a real time spectrum analyzer - all in a single package.

Revolution DPX spectrum display reveals transient signal behavior that helps you discover instability, glitches, and interference. Here, three distinct signals can be seen. Two high-level signals of different frequency-of-occurrence are seen in light and dark blue, and a third signal beneath the center signal can also be discerned. The DPX Density trigger allows the user to acquire signals for analysis only when this third signal is present. Trigger On This has been activated, and a density measurement box is automatically opened, measuring a signal density 7.275%, Any signal density greater than the measured value will cause a trigger event.

Outstanding RF performance, everyday

With its outstanding RF performance, generous feature set and easily accessible standard controls, you can rely on the RSA5000B every day. The impressive sweep speed with high sensitivity lets you complete a 10 GHz span sweep with a noise floor of -110 dBm/Hz in just 22 seconds, and multiple traces, markers and standard measurements are always at the ready.

  • Familiar, independent controls: RBW, VBW, Quasi Peak detector, Zero-Span
  • Comprehensive measurements: Channel Power, OBW, ACRL, Spurious, CCDF, Spectrogram
  • Simultaneously see events in frequency, time domains, and real time

Wideband signal analysis: design with confidence

The RSA5000B offers signal analysis that's both wide and highly accurate. The accuracy allows you to make higher margins in your measurements. The fact that it is wide allows you to rest assured that you'll find what you're seeking.

  • Wideband analysis with great dynamic range: 165 MHz with 80 dBc SFDR
  • Frequency Response for 165 MHz BW: ±0.4 dB, 1.5°
  • Options for WLAN, Bluetooth, ZigBee, Pulsed Analysis, and more

See real problems in real-time: DPX technology

Discover the most difficult, hard-to-find problems with industry-best, powerful real-time architecture. Advanced, proprietary DPX technology lets you see RF characteristics practically invisible to a conventional spectrum analyzer. Fully controllable and independent settings for Span, RBW, VBW in real time displays.

  • Detect any signal greater than 434 nsec with 100% probability of intercept-the industry's best performance
  • Fastest FFT engine: up to 3.125M FFTs/second
  • Most complete: DPX Spectrum, DPX Spectrogram, DPX Zero Span
  • Most powerful triggers: Frequency Mask, DPX Density, Runt, Level, Time Qualification for all triggers
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
RSA5103B RSA5106B RSA5115B RSA5126B
Frequency range 1 Hz - 3 GHz 1 Hz - 6.2 GHz 1 Hz - 15 GHz 1 Hz - 26.5 GHz
Real-time acquisition bandwidth 25 MHz, 40 MHz, 85 MHz, 125 MHz, 165 MHz
Minimum Event Duration for 100% POI at 100% amplitude

2.7 µs at 165 MHz BW (0.434 us, Opt. 300)

2.8 µs at 85 MHz BW (0.551 us, Opt. 300)

3.0 µs at 40 MHz BW (0.79 us, Opt. 300)

3.2 µs at 25 MHz BW (0.915 us, Opt. 300)

SFDR (typical) >75 dBc (25/40 MHz); >73 dBc (85/165 MHz); ≥ 80 dBc (Opts. B85HD, B125HD, B16xHD)
Trigger modes Free run, Triggered, FastFrame
Trigger types Power, Frequency mask, Frequency edge, DPX density, Runt, Time qualified
