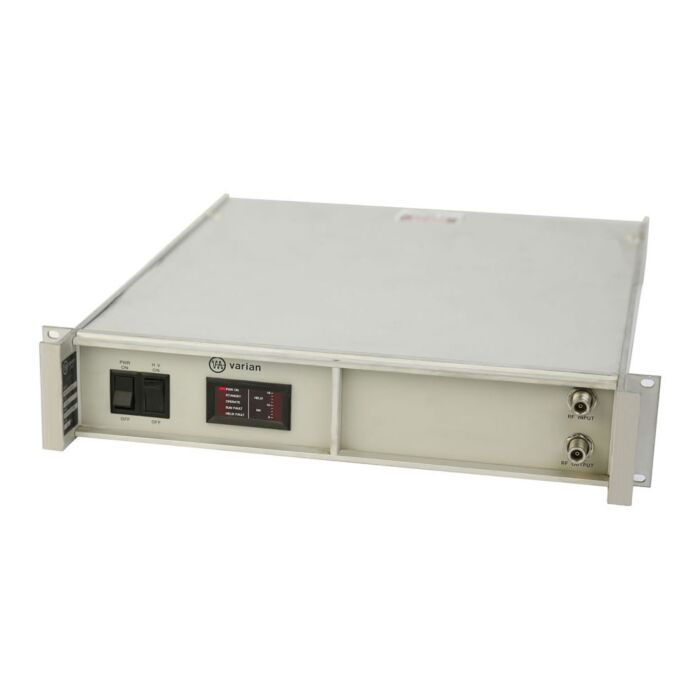

Used Varian VZL-6941K1 TWT Amplifier, 1-2GHz, 10W, 35dB Gain
TWT Amplifier,1-2GHz 10W,35dB Gain
Order #: VZL-6941K1-USED
Mfg #: VZL-6941K1-USED
$6,648.67
Used Varian VZL-6941K1 TWT Amplifier, 1-2GHz, 10W, 35dB Gain
TWT Amplifier,1-2GHz 10W,35dB Gain
Order #: VZL-6941K1-USED
Mfg #: VZL-6941K1-USED
$6,648.67
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
| Power | 20 Watts | |
| Frequency | 1.0 GHz to 2.0 GHz | |
| Gain | 40 dB | |
| O/P Conn. | N | |
| Impedance | 50 ohms nominal | |
| VSWR | Input: | 2.0:1 typical |
| Output: | 2.0:1 typical | |
| Load | 1.3:1 max. for full spec compliance. 2.0:1 mas for no damage | |
| Noise & Spurious | -50 dBc typical excluding harmonics and residual modulation | |
| Residual AM | -40 dBc | |
| Residual FM | Less than 4 kHz peak-to-peak in any 5 MHz band | |
| AM/PM Conversion | 2.5 /dB typical at 6 dB below rated output | |
| Noise Figure | 35 dB max. for L-Band and above | |
| Harmonic Content | -3 dBc at lower band edge decreasing to -15 dBc (typical) at upper band edge without optional harmonic filter. -20 dBc for P-Band models | |
| Dimension | 3.5 x 19 x 19.25 inches L-Band and above 7 x 19 x 18.1 inches P-band models | |
