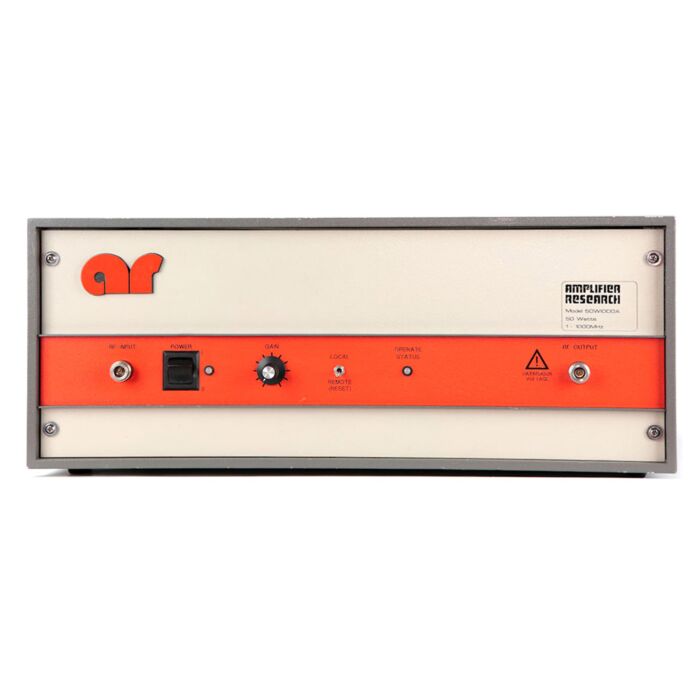

Used Amplifier Research 50W1000A Broadband RF Power Amplifier, 1MHz to 1GHz, 50W
Broadband RF Power Amplifier 1MHz-1GHz,50W
Order #: 50W1000A-USED
Mfg #: 50W1000A
$12,498.75
Used Amplifier Research 50W1000A Broadband RF Power Amplifier, 1MHz to 1GHz, 50W
Broadband RF Power Amplifier 1MHz-1GHz,50W
Order #: 50W1000A-USED
Mfg #: 50W1000A
$12,498.75
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
- Power Output, cw:
- Typical: 70W
- Minimum: 50W
- Linear: 40W minimum
- Flatness:
- Maximum: ± 1.5 dB
- Typical: ± 1.0 dB
- Frequency Response (instantaneous): 1 to 1000 MHz
- Input for Rated Output: 1.0 mW maximum
- Power Gain: 47 dB minimum
- Gain Control: 20 dB minimum
- Input Impedance: 50 ohms; VSWR 2.0:1 max.
- Output Impedance: 50 ohms nominal
- Class of Operation: A
- RF Connectors: Type N female
- Weight: 57 lbs (25.9 kg)
