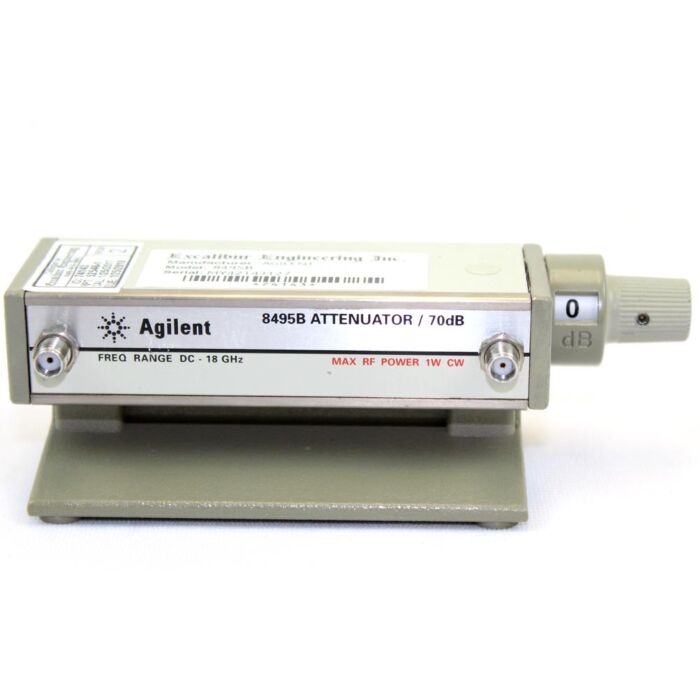

Used Keysight / Agilent 8495B Manual Step Attenuator, DC to 18GHz
Manual Step Attenuator DC to 18GHz

Order #: 8495B-USED

Mfg #: 8495B

Questions about availability or need help? Contact Us:

(800) 633-0561
$623.75

Used Keysight / Agilent 8495B Manual Step Attenuator, DC to 18GHz

Manual Step Attenuator DC to 18GHz

Order #: 8495B-USED

Mfg #: 8495B

$623.75

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now
This item has NEW version starting at
$2,406.00
Shop now

Product Highlights

The Keysight 8495B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency Range: dc to 18 GHz
  • Insertion Loss at 0 dB: 0.4 dB + 0.07 dB/GHz
  • Maximum SWR: 1.35 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
  • Repeatability and Life Span
    • Repeatability life: 0.03 dB max 5 million cycles per section, typical
    • 5 million cycles per section
    • Power handling
      • Maximum RF Input Power: 1 W (average), 100 W (peak)
    • Connector Type: choice of Type-N female, SMA female, APC-7
    • Connect in series with 11716A Attenuator Interconnect Kit, Type-N
    • Connect in series with 11716C Attenuator Interconnect Kit, SMA
