Used NH Research 9410-12 AC/DC Power Supply, 1-to 3-Phase, 400V/Phase, 30A/Phase, 12kW
AC/DC Power Supply,1-to 3-Phase 400V/Phase,30A/Phase,12kW
Order #: 9410-12-USED
Mfg #: 9410-12-USED
$37,500.00
Used NH Research 9410-12 AC/DC Power Supply, 1-to 3-Phase, 400V/Phase, 30A/Phase, 12kW
AC/DC Power Supply,1-to 3-Phase 400V/Phase,30A/Phase,12kW
Order #: 9410-12-USED
Mfg #: 9410-12-USED
$37,500.00
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Ships in 3-4 weeks
Product Highlights
- 8 models – 4kW/10.5kVA to 96kW/252kVA
- Output AC Voltage Ranges – 175, 350VRMS L-N
- Output DC Voltage – 200, 400VDC
- Output Frequency – DC, 30 to 100Hz
- Programmable 1, 2 or 3-Phase modes
- Full 4 quadrant AC source operation
- High resolution waveform capture on all V & I
- Sink power regenerated back to facility
- 9” Touch-Panel user interface
- SCPI programming & NI LabVIEW drivers

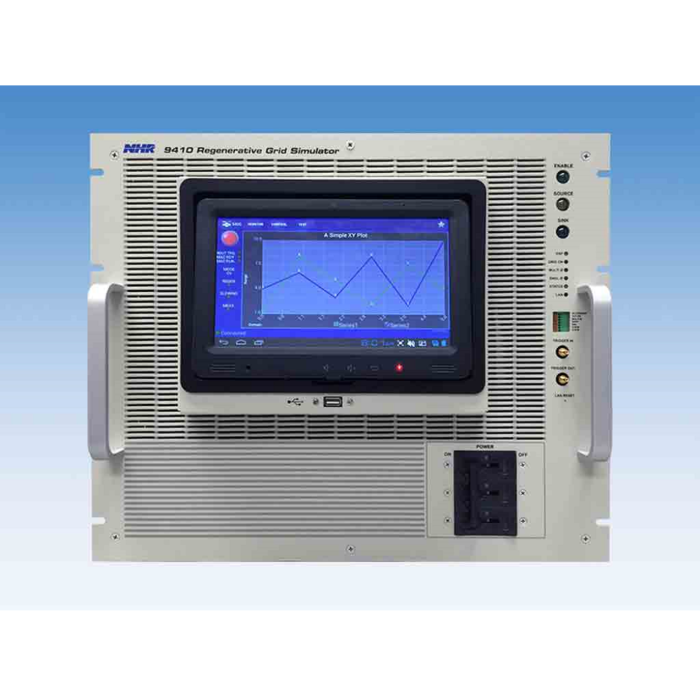

The NH Research 9410-12 Regenerative Grid Simulator is the smallest and most versatile grid simulator available for IEEE 1547/UL 1741/LVRT and similar grid-connected device testing. The NHR 9410-12 grid simulator is a fully-programmable, full 4 quadrant AC source designed for testing inverters, UPS, and other AC devices. This 4 quadrant grid simulator also supports up to three (3) outputs allowing any combination of DC or 1Φ, 2Φ, & 3Φ AC test channels. Each channel is fully programmable allowing per-output control of the AC voltage amplitude, wave-shape, & phase relationship. In addition, each output channel within this grid simulator contains a built-in advanced measurement system including a 125k Sample/sec waveform digitizer in order to capture and analyze transients, harmonics, & other AC disturbances. These features makes this grid simulator ideal for development, laboratory, and production facility testing especially when a single channel test system is required.
NOTE: This instrument is extremely heavy unit and needs to ship freight. Orders must be placed before 4 pm ET / 1 pm PT to allow time for scheduling freight pickup.
