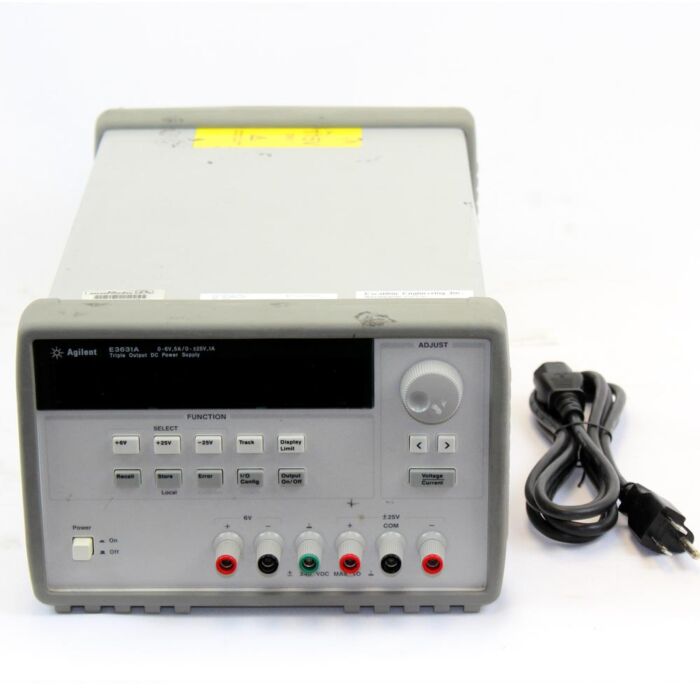

Used Keysight / Agilent E3631A Triple Output DC Power Supply, 6V, 5A and +/-25V, 1A, 80W
6V, 5A and +/-25V, 1A, 80W Trip Output DC Power Supply
Order #: E3631A-USED
Mfg #: E3631A
$1,648.50
Used Keysight / Agilent E3631A Triple Output DC Power Supply, 6V, 5A and +/-25V, 1A, 80W
6V, 5A and +/-25V, 1A, 80W Trip Output DC Power Supply
Order #: E3631A-USED
Mfg #: E3631A
$1,648.50
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Ships in 3-4 weeks
Tariff fees or manufacture imposed surcharges may be applicable.
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
Output Ratings
- Output 1: 0 to 6 V, 0 to 5 A
- Output 2: 0 to +25 V, 0 to 1 A
- Output 3: 0 to -25 V, 0 to 1 A
Programming Accuracy at 25°C ±5°C
- Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
- + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Ripple & Noise (20 Hz to 20 MHz)
- Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
- Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
- Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms
Readback Accuracy at 25°C ±5°C
- Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
- Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
