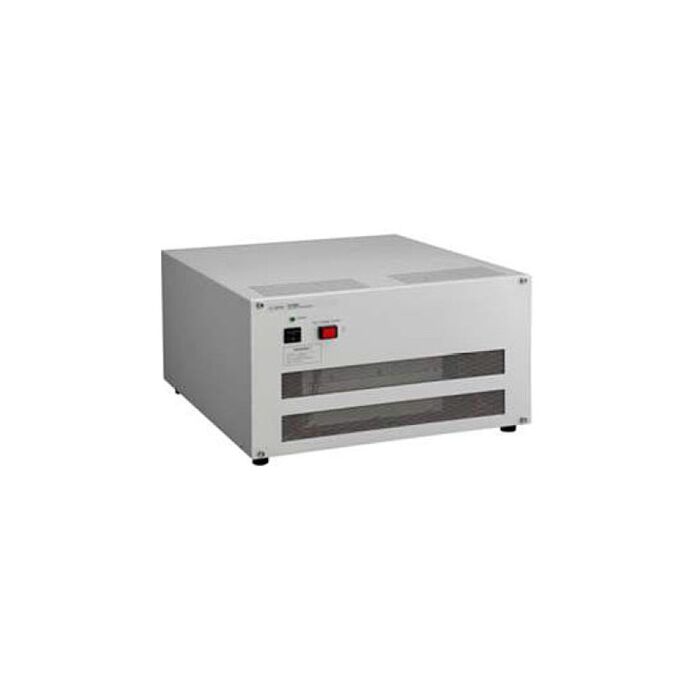

Used Keysight / Agilent N1268A Ultra High Voltage Expander
Order #: N1268A-USED
Mfg #: N1268A-USED
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
The Keysight N1268A Ultra High Voltage Expander Unit (UHVU) works in conjuction with the Keysight B1505A Power Device Analyzer / Curve Tracer. The N1268A UNVU supports breakdown measurements up to 10 kV. This ultra high voltage range capability provides state of the art accuracy, lexibility and ease-of-use for characterizing high power devices such as IGBTs. The N1268A must be used with a B1505A that has been configured with a minimum of two B1514A MCSMU's OR one B1514A MCSMU and one B1512A HCSMU.
Specifications of the Keysight N1268A Ultra High Voltage Expander Unit include:
- Max Votage: ±10kV
- Max Current: ± 10 mA (DC) and ±20 mA (pulse)
