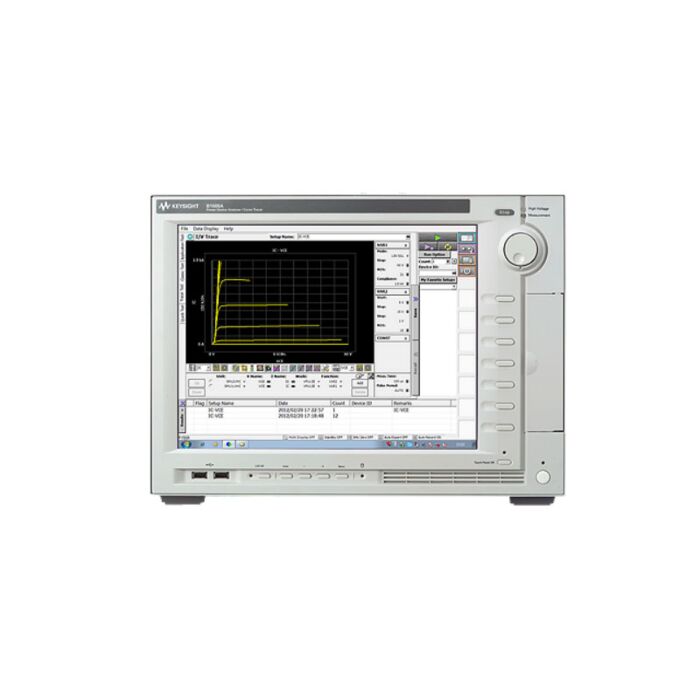

Used Keysight / Agilent B1505A Power Device Analyzer/ Curve Tracer
Power Device Analyzer/ Curve Tracer
Order #: B1505A-USED
Mfg #: B1505A-USED
$39,893.35
Used Keysight / Agilent B1505A Power Device Analyzer/ Curve Tracer
Power Device Analyzer/ Curve Tracer
Order #: B1505A-USED
Mfg #: B1505A-USED
$39,893.35
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
The Simplicity Of A Curve Tracer Combined With The Power Of A Device Analyzer
Keysight's B1505A power device analyzer delivers a single-box solution that characterizes high power devices from sub-pico amps up to 10 kV / 1500 A. The B1505A offers traditional curve tracer knob sweep control with a modern GUI. Configure this modular system to fit your most challenging measurement needs with a 10-slot power device analyzer and a variety of plug-in modules.
- Analyze data without an external PC using the intuitive 15-inch touch screen interface
- Enjoy an all-in-one device characterization analyzer supporting IV, CV, pulse/dynamic IV, and more
- Capture ultra-fast transient phenomena not possible with other conventional test instruments
- Switch between CV and IV measurements without re-cabling
- Improve measurement efficiency across a wide range of operating conditions
- Detect multi-frequency AC capacitance measurements from a range of 1 kHz to 5 MHz
- Save set-up information and measurement results automatically
- Streamline data management and analysis with Windows®-based EasyEXPERT group+ software
