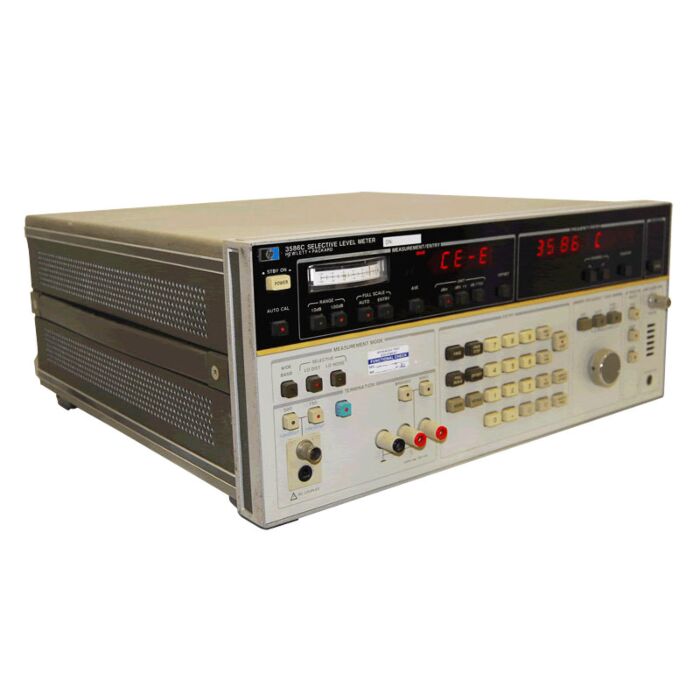

Used Keysight / Agilent 3586C Selective Level Meter
Selective Level Meter

Order #: 3586C-USED

Mfg #: 3586C-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,510.35

Used Keysight / Agilent 3586C Selective Level Meter

Selective Level Meter

Order #: 3586C-USED

Mfg #: 3586C-USED

$6,510.35

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The Keysight 3586C (formerly Agilent Technologies) selective level meter finds applications in general-purpose wave analysis for the design, manufacture, and maintenance of electronic systems. The 3586C is fully HP-IB programmable and covers the frequency range of 50 Hz to 32.5 MHz. This allows you to measure audio, sonar, and other low-frequency systems, as well as high-frequency communications subsystems. The 3586C provides input impedances of 50,75,and 600 fa with 10 kfl bridging for maximum measurement flexibility in a wide variety of applications. Measure signal levels with up to ± 0.2 dB accuracy down to -80 dB, with 0.01 dB resolution and bandwidth choices of 20,400,or 3100 Hz. The built-in counter and narrow-resolution bandwidths allow harmonic and intermodulation measurements to be made with ease. Frequency can be set or measured with 0.1 Hz resolution and 10 ppm stability (± 0.2 ppm optional).

For frequency response measurement of high-Q filters and other selective networks, the companion Keysight 3336C synthesizer/level generator functions as a full-featured, HP-IB programmable tracking generator. Frequency range for the 3336C is 10 Hz to 21 MHz, with precise output levels from -70 to +8 dBm.

Keysight 3586C Selective Level Meter instruments were previously manufactured by Agilent Technologies.

Frequency

Range: 50/75 f2 unbalanced input, 50 Hz to 32.5 MHz; 600 0 balanced input,100 Hz to 108 kHz
Resolution: 0.1 Hz
Center frequency accuracy: ±1 x 10 - 5/year (± 2 x 10/year with Option 004)

Selectivity

3dB bandwidth: ± 10%%:20 Hz,400 Hz,3100 Hz
Pass band flatness: ±0.3 dB

Level Accuracy (+20 to -80 dB):

0.20 dBm, 20 kHz to 18 MHz (± 2 x 10/year with Option 004)
± 0.25 dBm,18 MHz to 32.5 MHz
