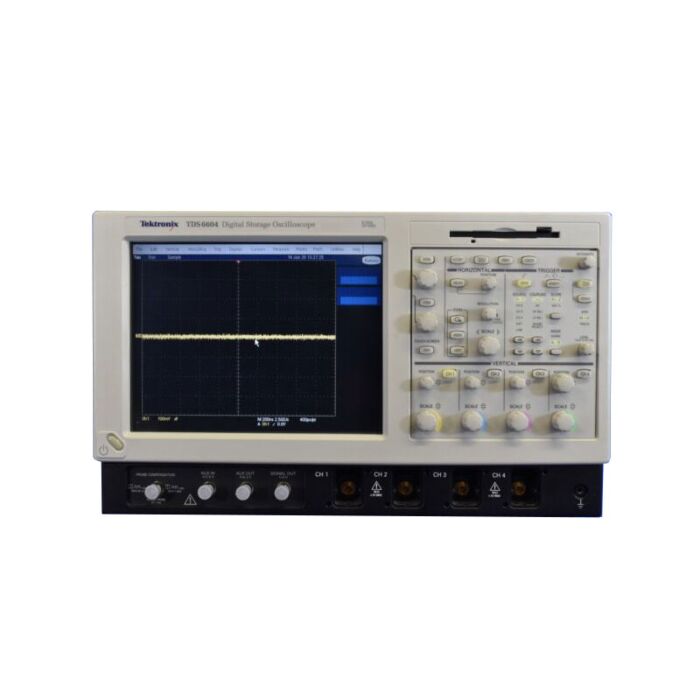

Used Tektronix TDS6604 Digital Oscilloscope, 6GHz, 4 Channel, 20GS/s
Digital Oscilloscope, 6GHz, 4 ch, 20GS/s

Order #: TDS6604-USED

Mfg #: TDS6604

Questions about availability or need help? Contact Us:

(800) 633-0561
$11,968.67

Used Tektronix TDS6604 Digital Oscilloscope, 6GHz, 4 Channel, 20GS/s

Digital Oscilloscope, 6GHz, 4 ch, 20GS/s

Order #: TDS6604-USED

Mfg #: TDS6604

$11,968.67

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Bandwith: 6 GHz
  • Number of Channels: 4
  • Record Length: 250k
  • Sample Rate: 20 GS/s
  • Max. Vertical Sensitivity: 1 V/div
  • Min. Vertical Sensitivity: 10 mV/div
  • Type (D/A) Digital
  • Down to 70 ps Rise Time
  • Jitter Measurements to 0.7 psRMS
  • Compliance Mask Tests Supporting a Wide Range of Computer and Datacom Standards
  • 32-Bit Serial Trigger for Isolation of Pattern dependent Effects
  • Analysis and Networking Functionality
  • MultiView Zoom for Rapid Navigation of the Record
  • Control Via Classic Direct Controls, Touch-sensitive Color Display or Mouse
  • Open Windows Environment
  • Built-in Networking

Applications:

  • Validation and Characterization of High-speed Digital Designs
  • Jitter and Timing Analysis
  • Investigation of Transient Phenomena

The TDS6604 oscilloscopes are high-performance solutions for verification, debug and characterization of sophisticated electronic designs. They feature exceptional signal acquisition performance, operational ease and open connectivity to the design environment. Classic analog-style controls, a large touch-sensitive display and graphical menus provide intuitive control. Open access to the Windows operating system enables unprecedented customization and extensibility.

With a 6 GHz bandwidth and 20 GS/s sample rate on 2 channels or 10 GS/s sample rate on 4 channels simultaneously, the TDS6604 provides unmatched signal integrity measurements. High-performance jitter analysis down to 0.7 psRMS is achieved through exceptional trigger and acquisition performance and applied software.
