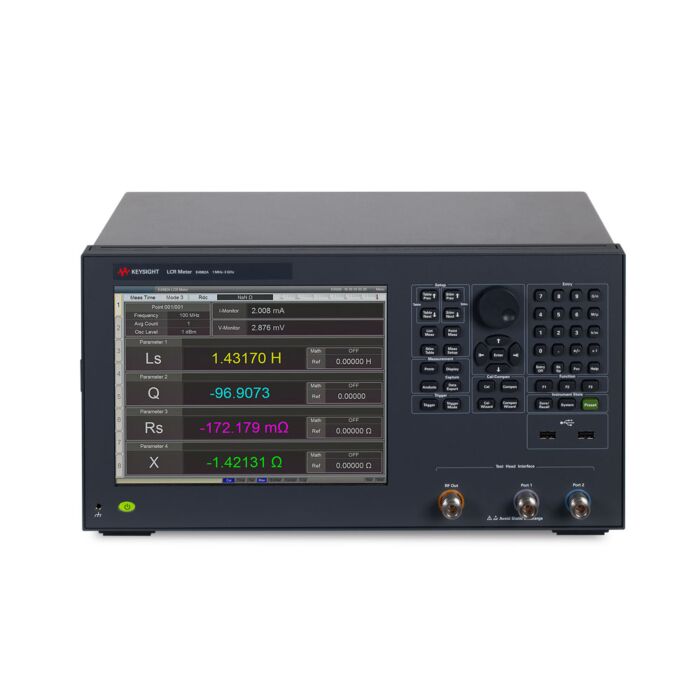

Used Keysight / Agilent E4982A-300 LCR Meter, 1MHz to 3GHz
Order #: E4982A-300-USED
Mfg #: E4982A-300-USED
Product Highlights
The E4982A LCR meter provides the best performance for passive component manufacturing such as SMD inductors and EMI filters where impedance testing at high frequencies (1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz) is required.
Frequency
- Four frequency options: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz, upgradable
Measurement Time
- High speed measurement: 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3)
Basic Accuracy And Impedance Range
- 0.8% basic accuracy with unparalleled measurement repeatability
- Wide impedance measurement range from 140 mΩ to 4.8 kΩ
More Features
- Compatible SCPI commands and Handler interface with the 4287A
- Small test head (the same size as 4287A)
- List measurement
- Versatile PC connectivity (GPIB, LAN, and USB)
The E4982A LCR meter provides the best performance for the passive component manufacturing such as SMD inductors and EMI filters where impedance testing at high frequencies is required. The E4982A can also be utilized for R and D and quality assurance with powerful functions such as list measurements.
