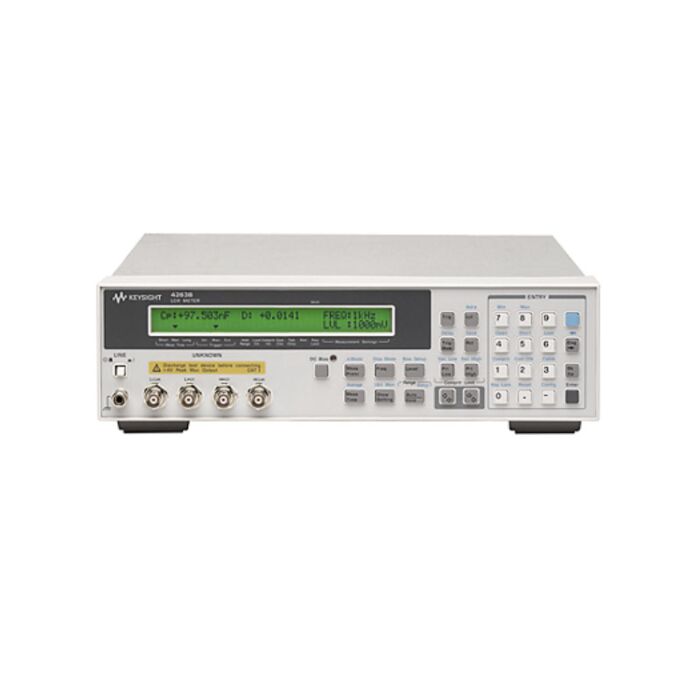

Used Keysight / Agilent 4263B LCR Meter, 100Hz to 100kHz
LCR Meter,100Hz to 100kHz
Order #: 4263B-USED
Mfg #: 4263B-USED
$2,658.67
Used Keysight / Agilent 4263B LCR Meter, 100Hz to 100kHz
LCR Meter,100Hz to 100kHz
Order #: 4263B-USED
Mfg #: 4263B-USED
$2,658.67
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
This item is available as RENTAL at
Call for price
Shop now
Keysight 4263B Highlights
The 4263B LCR meter is Keysight Technologies' most cost-effective low-end LCR meter, designed for both component evaluation on the production line and fundamental impedance testing for bentch top application.
- AC Test signal level: 20 mV to 1 Vrms in 5 mV step
- Internal DC bias (1.5 V, 2 V)
- Test signal level monitor function
- High-speed contact check
- Wide capacitance test range
- OPEN/SHORT/LOAD correction
- Up to 4 m cable extension
- Wide fixture availability
- 0.1% basic accuracy
- High-speed measurement: 25 ms
- DC and six frequencies (100/120/1 k/10 k/20 k/100 kHz)
- Measurement parameters: Z, Y, Theta, R, X, G, B, C, L, D, Q, Rdc, N, M
- Add N/M/DCR Measurement Function
