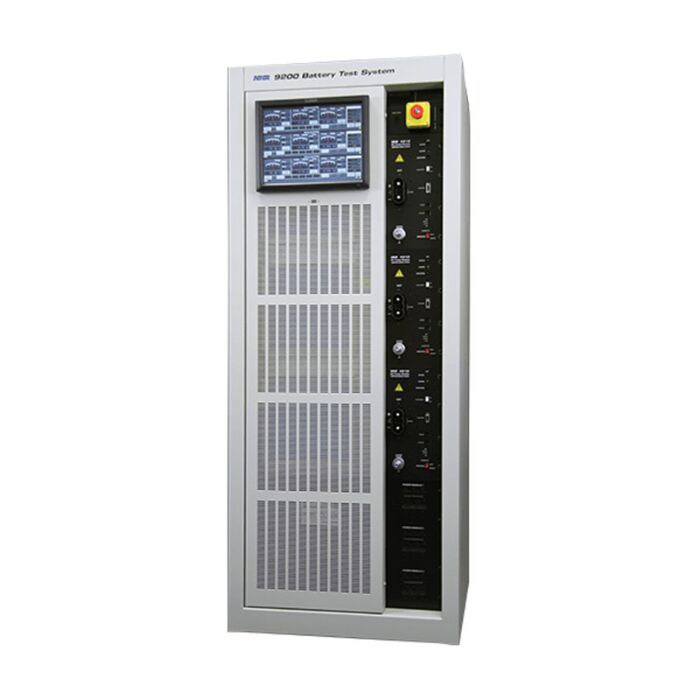

Used NH Research 9200-4912-36 DC Battery Test System, 120V, 200A, 36kW

Product Highlights

• Best configuration flexibility
• Custom waveform/profile generation
• Microsecond voltage, current & mode transition times
• Built-in digital measurements with charting & scope displays
• 3 test system control options including a Touch-Panel interface Expandable from 12 to 252kW with 40, 120, 240 or 600V bi-directional DC loads 87% efficiency of discharge power returned to AC mains
• Multiple safety layers to protect battery being tested
• Battery emulation & burn-in applications

The 9200 Battery Test System is designed for all battery chemistries including lead-acid, nickel-cadmium and lithium-ion. The 9200 is ideally suited for applications where maximum tester configuration flexibility is needed to adapt to a broad range of battery voltage, current and power requirements now and in the future. Another good fit is where high-speed set and measurement are necessary to better characterize battery transient performance. A third application is where easier and faster test program creation is desired. All applications benefit from the 9200 discharge power recycling capability, which results in both a cooler test environment and system cost recovery in a few years. Other 9200 applications such as battery emulation, battery charger test and power supply burn-in are covered in supplemental product bulletins.
