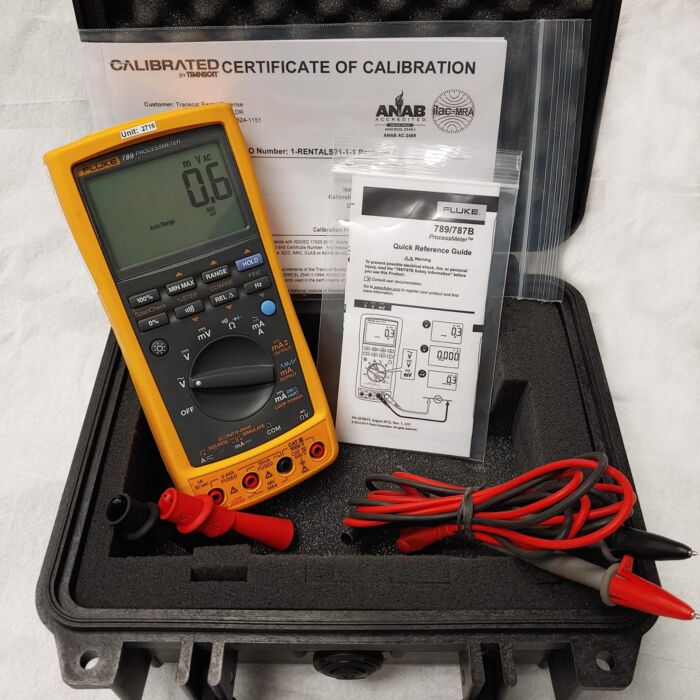

Used Fluke 789 Process Meter, Digital Multimeter and Loop
Process Meter, DMM and Loop Calibrator
Order #: 789-USED
Mfg #: 789
$1,328.67
Used Fluke 789 Process Meter, Digital Multimeter and Loop
Process Meter, DMM and Loop Calibrator
Order #: 789-USED
Mfg #: 789
$1,328.67
Availability: Ships in 1-2 weeks
Product Highlights
- 24 V loop power supply
- HART mode setting with loop power (adds 250 ohm resistor)
- 100% larger dual display
- 1200 ohm drive capability on mA source
- Enhanced backlight with two brightness settings
- Improved battery power with four AA batteries
- 0-100% mA Span Check buttons to toggle between 4 and 20 mA
- Infrared I/O serial port compatible with FlukeView Forms
- V 2.1 Software (available Feb. 2003)
- 5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements
- Externally accessible fuses for easy replacement
- DMM designed to meet 1000 V IEC 1010 Cat III standards
- Precision 1000 V, 440 mA digital multimeter
- Measure ac and dc volts
- AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA
- Simultaneous mA and % of scale readout
- True-rms ac voltage measurement
- Frequency measurement to 20 kHz
- Min/Max/Average/Hold/Relative modes
- Diode Test and Continuity Beeper
- 20 mA dc current source / loop calibrator / simulator
- Simultaneous mA and % of scale readout
- Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
- Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse)
- Process Meter
Each Unit Includes
- TL71 Premium Test Lead Set
- AC72 Alligator Clips
- Four AA alkaline batteries (installed)
- Users Manual
- Quick Reference Guide
- Hard Case
- Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $51.91 Regular Price $62.55 - Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability: Ships in 1-2 weeksSpecial Price $62.74 Regular Price $74.79 - Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $124.15 Regular Price $149.59 - Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stockSpecial Price $67.77 Regular Price $76.15 - Fluke I1010 AC/DC Clamp-on Current Probe 600A/1000AAC/DC Clamp-on Current Probe 600A/1000A
Order #: I-1010
Mfg #: 617735
Availability:In stockSpecial Price $603.89 Regular Price $727.59 - Fluke I410 AC/DC Clamp-on Current Probe, 400AAC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:In stockSpecial Price $376.53 Regular Price $448.79 - Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead SetsSlim Reach Flat Blade Probe for Fluke Lead Sets
Order #: TP1E
Mfg #: 650887
Availability:In stockSpecial Price $33.85 Regular Price $40.79 - Fluke TP220 SureGrip Industrial Test ProbesSureGrip Industrial Test Probes
Order #: TP20
Mfg #: 1670056
Availability:In stockSpecial Price $36.11 Regular Price $43.51 - Fluke FVF-BASIC Flukeview Forms Basic Software with CableFlukeview Forms Basic Software with Cable
Order #: FVF-BASIC
Mfg #: 2396957
Availability: Ships in 4-6 weeksSpecial Price $258.48 Regular Price $311.43 - Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $237.03 Regular Price $285.59
Current measurement | Range | 0-1 A AC or DC |
Resolution | 1 mA | |
Accuracy | 0.2% + 2 LSD (DC) | |
Range | 0-30 mA | |
Resolution | 0.001 mA | |
Accuracy | 0.05% + 2 lSD | |
Current sourcing | Range | 0-20 mA or 4-20 mA |
Resolution | 0.05% of span | |
Drive capability | 24 V Compliance or 1200 Ω @ 20 mA | |
Frequency | to 19.999 kHz, 0.005% + 1 LSD | |
Continuity | Beeps for resistance < 100 Ω | |
Voltage measurement | Range | 0-1000 V AC (true-rms) or DC |
Resolution | 0.1 mV to 1.0 V | |
Accuracy | 0.1% Rdg + 1 LSD (VDC) | |
Resistance measurement | to 40 MΩ, 0.2% + 1 LSD | |
Diode test | 2.0 V shoes diode voltage drop | |
Display current and % of span | Yes | |
Auto Step, Auto Ramp | Yes | |
Environmental Specifications | ||
Operating temperature | -20°C to 55°C | |
Storage temperature | -40°C to 60°C | |
Humidity (without condensation) | 95% up to 30°C |
