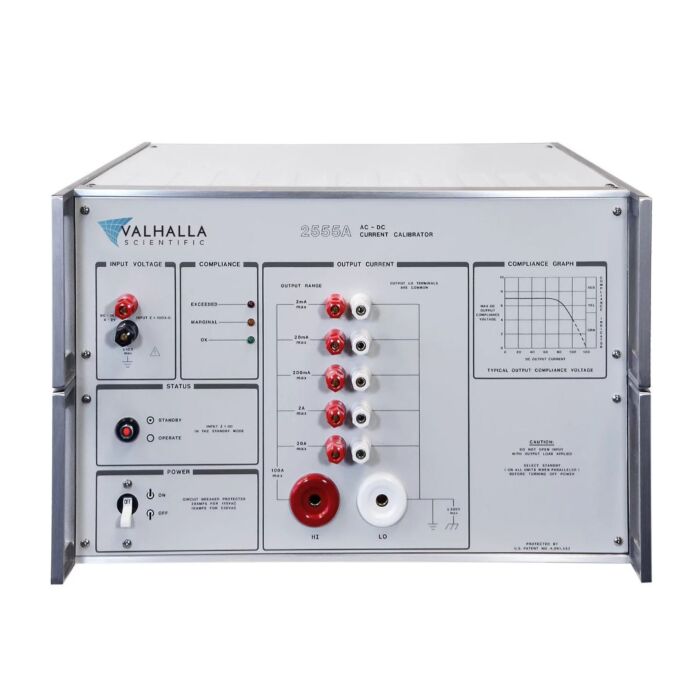

Used Valhalla Scientific 2555A AC/DC Current Calibrator
Order #: 2555A-USED
Mfg #: 2555A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The 2555A is the world's leading AC-DC current calibrator for one big reason. It's earned that position through years of rock-solid reliability and unmatched performance. Our satisfied and discriminating customers include the U.S. Army, Navy, Air Force and the National Institute of Standards and Technology, as well as an impressive list of hundreds of other proud 2555A owners around the world. Valhalla's proprietary internal shunt design with low TC (2ppm/°C) is just one of the technologies which provide the 2555A with rock-solid constant AC or DC current. Supplies 400 watts (i.e. 7 volts at 55 amps) in output compliance capability to drive heavy burden loads and still delivers constant current. The output compliance is monitored by the unit's internal voltmeter. Compliance voltage status is displayed with a green L.E.D. indicator for "OK" or within compliance, a yellow L.E.D for marginal" compliance, and a red L.E.D. for compliance exceeded" indication. To ensure that compliance voltage is available to the load (and not just the leads). The C1000 along with the 2555A, make the calibration of clamp-on ammeters, current transformers, and a variety of current sensor (magnetic field based) devices a simple task. The basic principle involves the 2555A driving 100 amps per turn into a 10 turn coil. The 2555A can easily drive the ten turn option "C1000" and simulate 1000 amps.
- Up to 20 Amps/phase direct (self contained shunt 0.1%)
- Precision AC/DC Transconductance Amplifier
- Programmable AC~DC 100Amp Current Calibrator/Current Source
- Calibration Traceable to NIST
- Maximum Output Current: 100A DC or RMS AC
- Highly Accurate
- Ultra-low Noise
- Ultra-Stable
- Excellent Response time
- High CMR
- Load Regulation: Output current ? < ± .002%
- Dynamic Range: 0 to 100% of range up to maximum rated output (100A max.)
Input Impedance: | 100kΩ | Input CMR | 60dB @ DC linearity decreasing to 40dB @ max frequency |
Compliance Voltage | 7VDC or 7Vac (RMS) to 60A
4VDC or 4Vac (RMS) to 100A |
Temperature Coefficient | ±0.001% of output ±0.002% of rng/double for AC |
Input/Output Ratio | 00000V input provides full-scale output
(1.0000V input produces 100.00A output) |
Power Requirements | 115VAC/230VAC ±10% at 50 to 60Hz |
Stability | +0.0005% -15min. (±0.005% for 24Hr) | Operating Temp. Range: | 0°C to 50°C |
Load Regulation | Output current level changes less than ±0.002% | Storage Temp. Range: | -30°C to 70°C |
Maximum Input: | 3VDC or 2Vac (RMS) | Humidity | 70% RH max @ 40°C (non-condensing) |
Maximum Isolation Voltage | ±200VDC or peak AC | Size | 266mm/10.5" L x 432mm/17" W x 584mm/23" D |
Weight: | 100lbs / 45kg net; |
-
