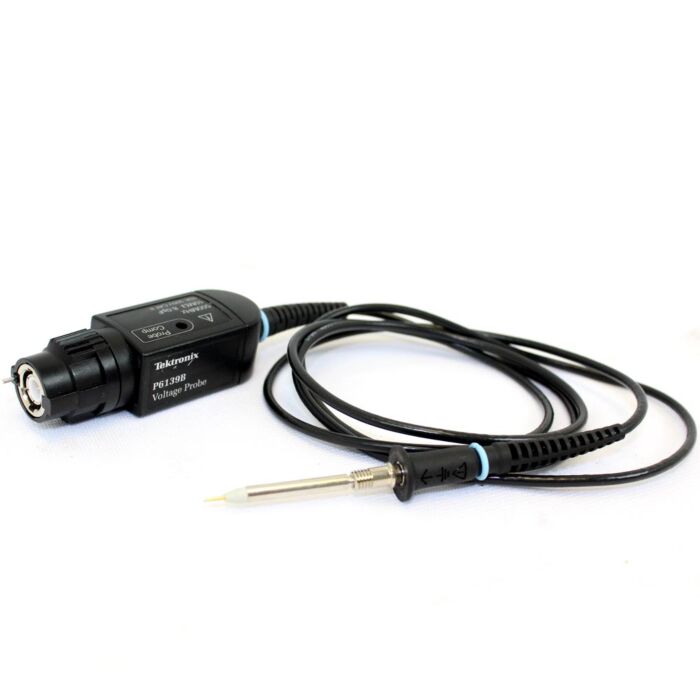

Used Tektronix P6139B 500MHz Passive Probe

Product Highlights

The P6139B and P5050B probes are high bandwidth, high impedance 10X passive voltage probes with 10 MΩ input resistance. These probes feature a small probe head and sharp tip that makes it easier to probe dense circuitry. The P6139B and P5050B share similar electrical specifications but support Tektronix oscilloscopes with different compensation ranges.

Key performance specifications

• 500 MHz probe bandwidth
• Large input impedance at the probe tip (10 MΩ, 8pF)
• 10X attenuation factor
• 300 v CAT II input voltage

Ease-of-use features

• Compact probe head for probing small geometry circuit elements
• Small probe body for enhanced visibility to the Device-Under-Test
• Replaceable probe tip cartridges
• Large accessory set for versatile connectivity

Connectivity

• P6139B and P5050B feature the TekProbe interface for direct BNC connection for oscilloscopes with 1 MΩ inputs.
• Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display.

Applications

• Low power devices
• Service
• Manufacturing engineering
• Test research and development
