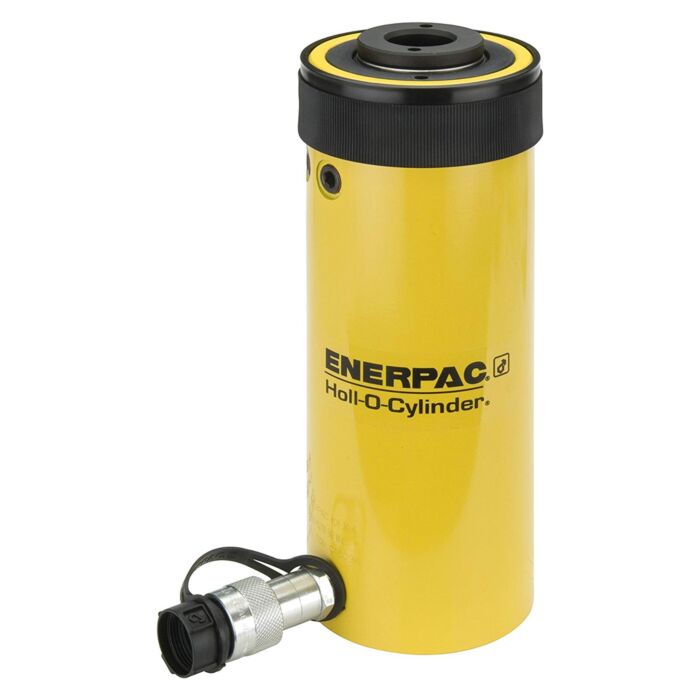

Enerpac RCH-206 20-Ton S/A Holl-O-Cylinder
20-Ton S/A Holl-O-Cylinder
Order #: RCH-206
Mfg #: RCH206
$3,078.60
Enerpac RCH-206 20-Ton S/A Holl-O-Cylinder
20-Ton S/A Holl-O-Cylinder
Order #: RCH-206
Mfg #: RCH206
Product Highlights
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 218 kNs increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
| Cylinder capacity | 20 tons (23.6 maximum) |
| Stroke length | 6.10 inches |
| Effective area | 4.73 square inches |
| Oil capacity | 28.67 cubic inches |
| Cylinder bore diameter | 2.88 inches |
| Collapsed height | 12.05 inches |
| Extended height | 18.11 inches |
| Outside diameter | 3.88 inches |
| Center hole diameter | 1.06 inches |
| Port size | 1/4" NPTF |
| Weight | 31 lb. |
