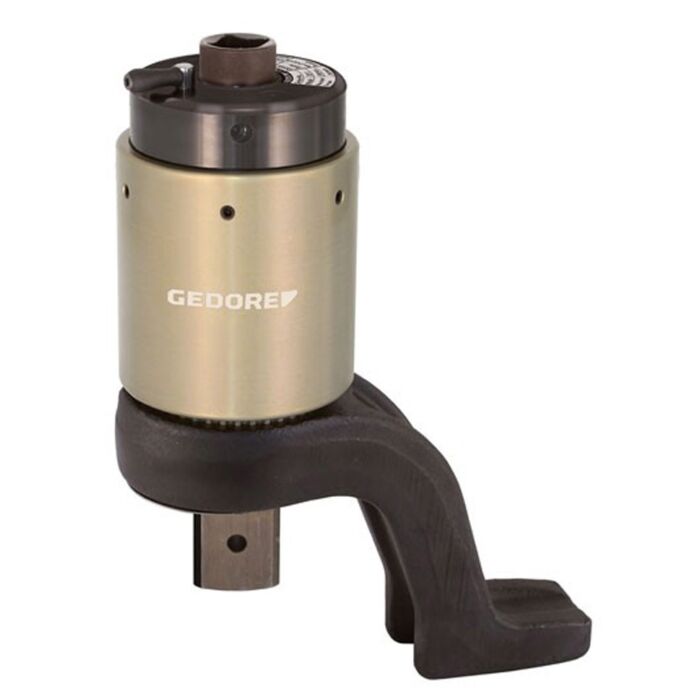

Gedore Tools 2653117

Product Highlights

Features

Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections. With a two-stage planet gear. High-performance aluminium housing. Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39. All models with anti-wind-up ratchet (RS). With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise. Z-form, offset reaction arm depending on model made of chrome-vanadium steel. Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal. Guaranteed accuracy: Better than +/- 3 % tolerance. For operation in combination with a torque wrench. 4 models for maximum load in the range between max. 6000 N*m and max. 13000 N*m. Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:. Torque Multiplier DREMOPLUS ALU. With Z-form offset reaction arm. Delivery in sturdy shipping case with foam insert. Factory test certificate and setting table. Detailed technical information is available on request.

• Output Torque (max. Nm): 6000 N*m
• Input Torque (max. Nm): 400 N*m
• Output Torque (Max. lbf.ft): 4400 lbf*ft
• Packing Unit: 1 Piece
• Distance from Drive to Beginning of Reaction Arm (min.): 110 mm
• Distance from Drive to End of Reaction Arm (max.): 190 mm
• Total Height with Reaction Arm (min.): 316 mm
• Total Height with Reaction Arm (max.): 324 mm
• Weight: 10.5 kg
• Width of Torque Multiplier: 102 mm
• Height of Torque Multiplier: 257 mm
• Input Torque lbf.ft: 300 lbf*ft
