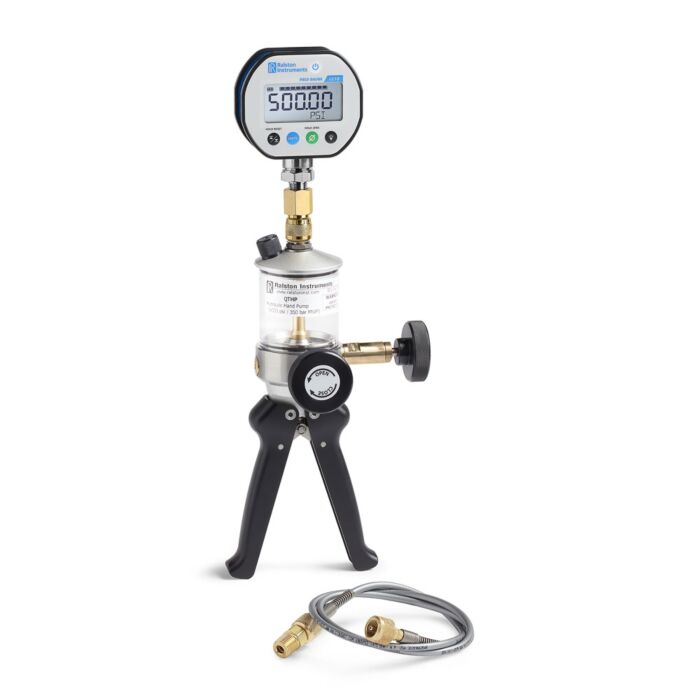

Ralston Instruments QTHP-3KPSIG-D 5K PSI/35mPa Hydraulic Hand Pump, 3K PSI Digital Gauge

Product Highlights

• Lightweight and easy to use - weighs only 1.4 kg, and with the pressurized section located below the reservoir, it’s well balanced and easy to hold and pump with one hand
• Extremely durable - the liquid reservoir is highly resistant to shock, extreme temperature and chemical exposure, and it’s far less prone to shattering. Sturdy metal handles won’t wear out or break when dropped
• Easy to disassemble and repair with standard hand tools
• Machined from solid, stainless steel preventing pressure leaks common in housings made from cast material and ensuring consistent, stable pressure
• Includes Ralston Quick-test adapters and hoses for quick & efficient connection
• Compatible with most liquids
• Pump comes fitted with a fill plug with over-pressure relief for easy set up.
• Made in the USA
• Hand Pump QTHP Hydraulic Hand Pump
• Pressure Reference: LC10 pressure gauge, 3000 psi / 200 bar / 20 MPa, 1/4" Male NPT bottom connection
• Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
• Process Connection 1/4" male NPT x male Quick-test, no check-valve, brass
• Hose Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
• Bottle Bottle with flip top for Hydraulic pump fluid, empty

Each Unit Includes

• LC10 pressure gauge, 3000 psi / 200 bar / 20 MPa, 1/4" Male NPT bottom connection Pressure Reference LC10-GR2M
• 1/4" female NPT x female Quick-test, no check-valve, brass Reference Connection QTHA-2FBA
• 1/4" male NPT x male Quick-test, no check-valve, brass Process Connection QTHA-2MB0
• Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long Hose QTQT-HOS-3ft
• Bottle with flip top for Hydraulic pump fluid, empty Bottle QTHP-BOTL
• USB-A to Micro USB-B cable, 2m long D-000040
