Order #: PUD1100B
Mfg #: PUD1100B

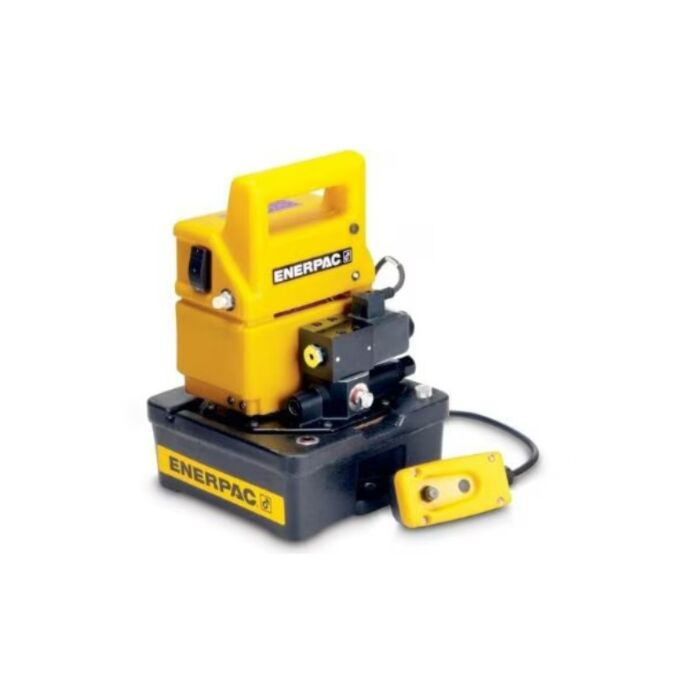

Enerpac PUD1100B Economy Electric Hydraulic Pump, Dump Valve, 115V, 2 Speed
Order #: PUD1100B
Mfg #: PUD1100B
Product Highlights
Two Speed, Economy Electric Hydraulic Pump, Dump Valve, 115V, For use with Single-Acting Cylinders
PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.
All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.
Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.
PUD1100 Series
- For advance and retract of single-acting cylinders
- For applications not requiring load holding
- Ideal for punching applications
PUD1300 Series
- Providing advance, hold, and retract of single-acting cylinders
- Ideal for applications requiring load holding
- For applications requiring solenoid valves
PUJ-Series
- Manual valves provide advance, hold, and retract operation
- 3 and 4-way valves for single or double-acting cylinders
Maximum Operating Pressure (psi) | 10,000 |
Pressure Rating (psi) 1st Stage | 200 |
Pressure Rating (psi) 2nd Stage | 10,000 |
Cylinder Compatability | Single-acting |
Reservoir Capacity (in3) | 116 |
Usable Oil Capacity (in3) | 0.5 |
Maximum Flow at Rated Pressure | 20 in3/min |
Output Flow Rate (in3/min) 1st Stage | 200 |
Output Flow Rate (in3/min) 2nd Stage | 20 |
Motor Size (hp) | 0.5 |
Motor Voltage | 115 V |
Duty Cycle | Intermittent |
Valve Function | Advance/Retract |
Power Source | Electric |
Pump Operation | Dump |
Pump Control | Pendant |
Motor Electrical Specification | 115 V, 50/60 Hz |
Current Draw (amps) | 9.5 |
Sound Level (dBa) | 85 |
Weight (lbs) | 26 |
-
-
-
