Order #: MS210
Mfg #: MS210

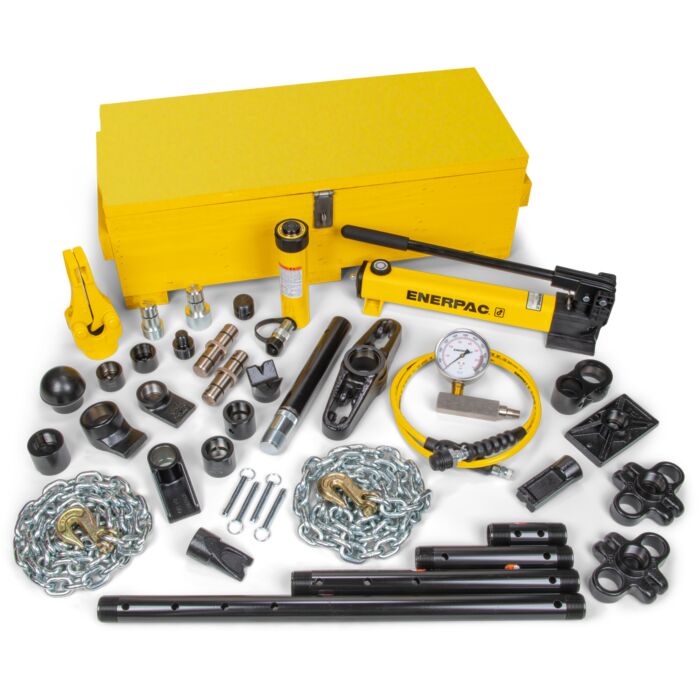

Enerpac MS210 5 Ton, Hydraulic Cylinder and Hand Pump Set
Order #: MS210
Mfg #: MS210
Product Highlights
5 Ton, Hydraulic Cylinder and Hand Pump Set with 35 Cylinder Attachments
This hydraulic pump and cylinder set includes a complete assortment of accessories allowing you to configure a unique tool to solve a wide range of difficult maintenance tasks.
The set includes the RC106 Hydraulic Cylinder, which when used with attachments allows you to exert a force of 5 tons (50kN) and a stroke of 6.13" (156mm). Ideal when you need to push, pull, lift, press, straighten, spread, or clamp.
Also included is the lightweight P392 2-speed hydraulic hand pump, hose, gauge, A92 spreader attachment, lock-on or threaded connectors, and a storage crate.
Safe Operation
When using hydraulic cylinders with maintenance set attachments or components, the maximum system pressure must be limited to half of the rated pressure (5,000 psi / 350 bar). When not using attachments, the tonnage and pressure capacities are double these values.
Only use attachments provided with the set. Using non-Enerpac attachments and longer extension tubes could reduce column strength - potentially creating unsafe conditions.
Maximum Operating Pressure (psi) | 5,000 |
Stroke (in) | 6.13 |
Collapsed Height (in) | 9.75 |
Number of Attachment Components | 35 |
Weight (lbs) | 140 |
-
-
