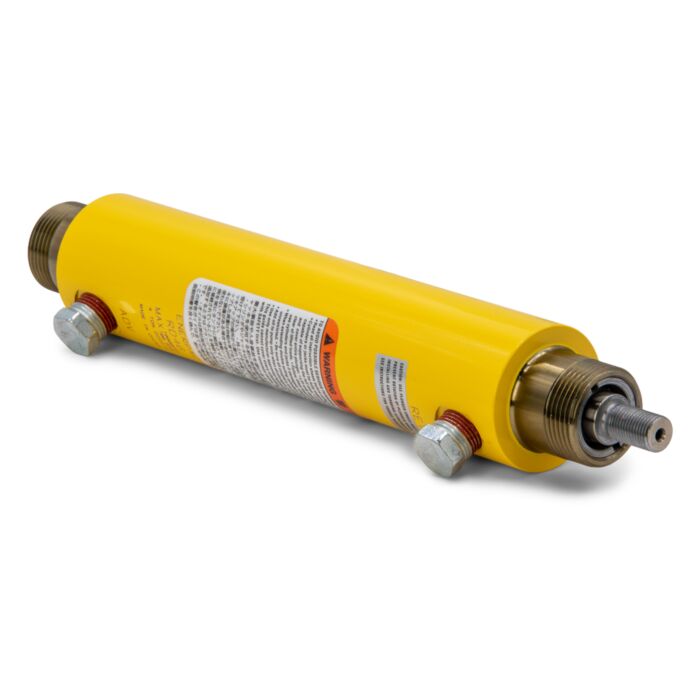

Enerpac RD46 Double-Acting, General Purpose Hydraulic Cylinder, 4 ton
Double-Acting, General Purpose Hydraulic Cylinder, 4 ton

Order #: RD46

Mfg #: RD46

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,771.00

Enerpac RD46 Double-Acting, General Purpose Hydraulic Cylinder, 4 ton

Double-Acting, General Purpose Hydraulic Cylinder, 4 ton

Order #: RD46

Mfg #: RD46

$1,771.00
Availability:
In stock

Product Highlights

4 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

  • Designed for long life, the best choice for production applications
  • Unique mounting configurations simplify fixturing
  • Baked enamel finish for increased corrosion resistance
  • Double-acting operation develops force in both directions, providing maximum versatility
  • Plunger wiper reduces contamination, extending cylinder life
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 10,000
Capacity Class (tonnage) 4
Maximum Cylinder Capacity Advance (short tons) 4
Maximum Cylinder Capacity Retract (short tons) 2
Stroke (in) 6.13
Collapsed Height A (in) 12.31
Extended Height B (in) 18.44
Return Type Double-Acting, Hydraulic Return
Plunger Type Solid
Material Steel
Cylinder Effective Area Advance (in2) 0.79
Cylinder Effective Area Retract (in2) 0.34
Oil Capacity Advance (in3) 4.81
Oil Capacity Retract (in3) 2.1
Cylinder Capacity Advance at 5000 psi (lbs) 3900
Cylinder Capacity Retract at 5000 psi (lbs) 1720
Surface Treatment Paint
Coupler -
Weight (lbs) 9
