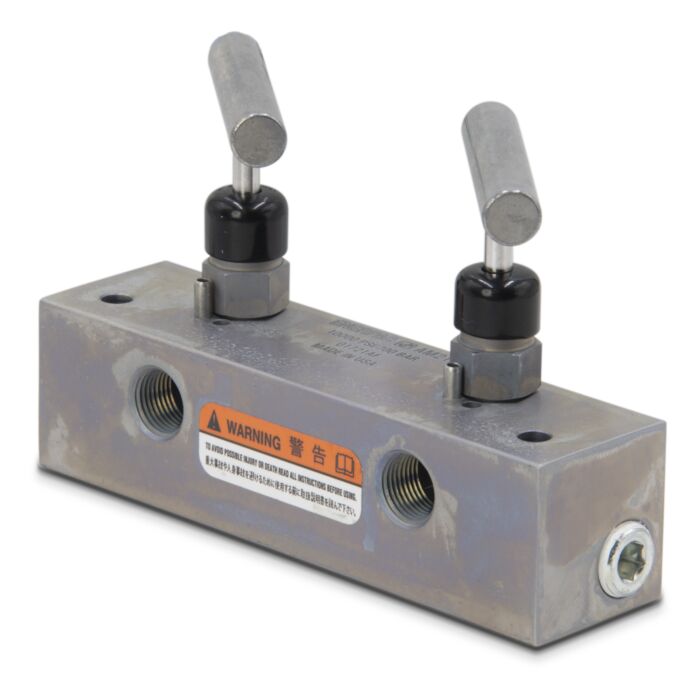

Enerpac AM-21 Manifold Valve, 2-Way
Manifold Valve,2-Way

Order #: AM21

Mfg #: AM-21

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,160.60

Enerpac AM-21 Manifold Valve, 2-Way

Manifold Valve,2-Way

Order #: AM21

Mfg #: AM-21

$1,160.60
Availability:
In stock

Product Highlights

Split Flow Hydraulic Manifold, 1 inlet, 2 outlet ports

AM-Series hydraulic manifolds can be used to split the flow from a single inlet port to 2 or 4 outlet ports. The integral needle valve handles on each port are used to switch the flow on or off.

All ports connections are 3/8"-18 NPTF and both models have a maximum operating pressure of up to 10,000 psi (700 bar).

AM21 has 2 outlets
AM41 has 4 outlets

  • Functions as split-flow valve to control single-acting cylinders simultaneously
  • Handle used to open and close each port
  • Easy to connect
  • Mounting holes on all models
  • All ports 3/8"-18 NPTF.
  • Maximum pressure up to 10,000 psi (700 bar)
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Number of Inlet Ports 1
Number of Outlet Ports 2
Number of Regulated Outlet Ports 2
Oil Ports 3/8" NPTF
Maximum Operating Pressure (psi) 10,000
