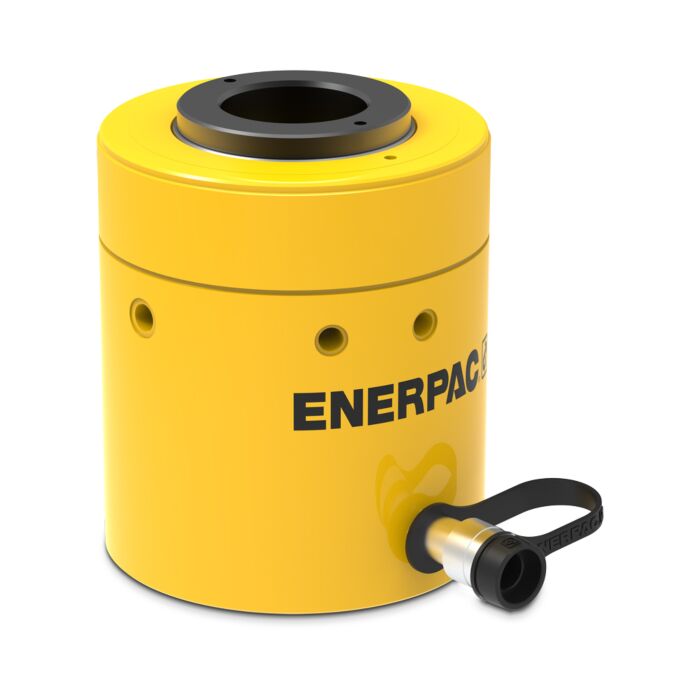

Enerpac RCH1003 100-Ton Holl-O-Cylinder, S/A
100-Ton Holl-O-Cylinder,S/A
Order #: RCH-1003
Mfg #: RCH1003
$9,959.60
Enerpac RCH1003 100-Ton Holl-O-Cylinder, S/A
100-Ton Holl-O-Cylinder,S/A
Order #: RCH-1003
Mfg #: RCH1003
Product Highlights
RCH-Series Hollow Plunger Cylinders offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull or lifting applications.?
Enerpac cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. The center hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has nickel-plated floating center tube to reduce side load damage and increase the product life.?
| Maximum Operating Pressure (psi) | 10,000 |
| Capacity Class (tonnage) | 100 |
| Maximum Cylinder Capacity Advance (short tons) | 103.1 |
| Stroke (in) | 3 |
| Collapsed Height A (in) | 10 |
| Extended Height B (in) | 13 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 20.63 |
| Oil Capacity Advance (in3) | 61.88 |
| Surface Treatment | Paint |
| Coupler | CR400 Coupler |
| Weight (lbs) | 132 |
