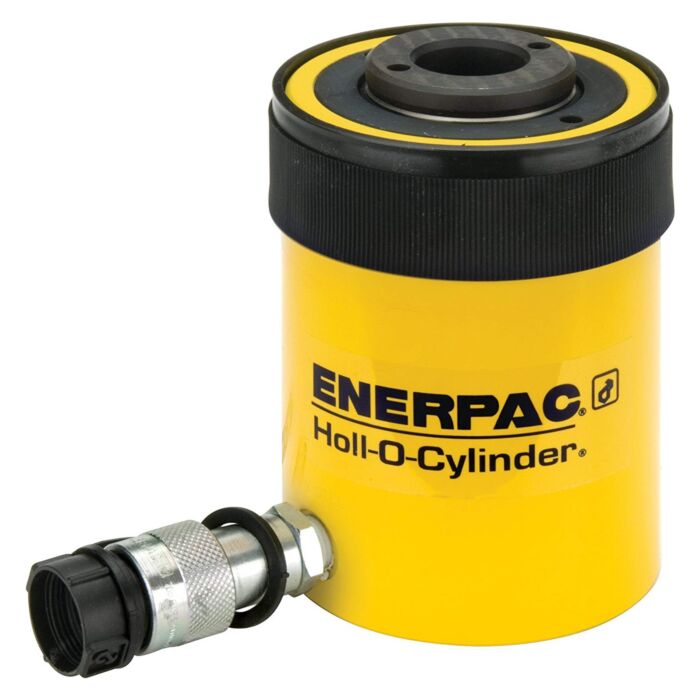

Enerpac RCH-302 Hollow Plunger Cylinder, 30-Ton, 2.5"Stroke
Hollow Plunger Cylinder 30-Ton,2.5"Stroke
Order #: RCH-302
Mfg #: 302758
$2,819.60
Enerpac RCH-302 Hollow Plunger Cylinder, 30-Ton, 2.5"Stroke
Hollow Plunger Cylinder 30-Ton,2.5"Stroke
Order #: RCH-302
Mfg #: 302758
Product Highlights
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
| Cylinder capacity | 30 tons (36.1 maximum) |
| Stroke length | 2.50 inches |
| Effective area | 7.22 square inches |
| Oil capacity | 18.05 cubic inches |
| Cylinder bore diameter | 3.50 inches |
| Collapsed height | 7.03 inches |
| Extended height | 9.53 inches |
| Outside diameter | 4.50 inches |
| Center hole diameter | 1.31 |
| Port size | 1/4" NPTF |
| Weight | 24 lb. |
