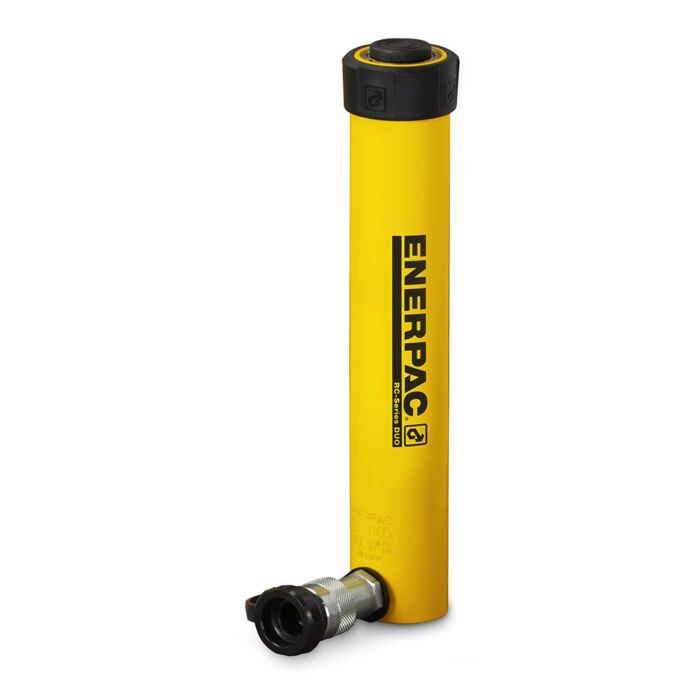

Enerpac RC-108 10-Ton Cylinder, S/A
10-Ton Cylinder,S/A
Order #: RC-108
Mfg #: 300846
$1,096.20
Enerpac RC-108 10-Ton Cylinder, S/A
10-Ton Cylinder,S/A
Order #: RC-108
Mfg #: 300846
Product Highlights
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
| Cylinder capacity | 10 tons (11.2 maximum) |
| Stroke length | 8 inches |
| Effective area | 2.24 square inches |
| Oil capacity | 17.89 cubic inches |
| Cylinder bore diameter | 1.69 inches |
| Collapsed height | 11.75 inches |
| Extended height | 19.75 inches |
| Outside diameter | 2.25 inches |
| Weight | 12 lb. |
