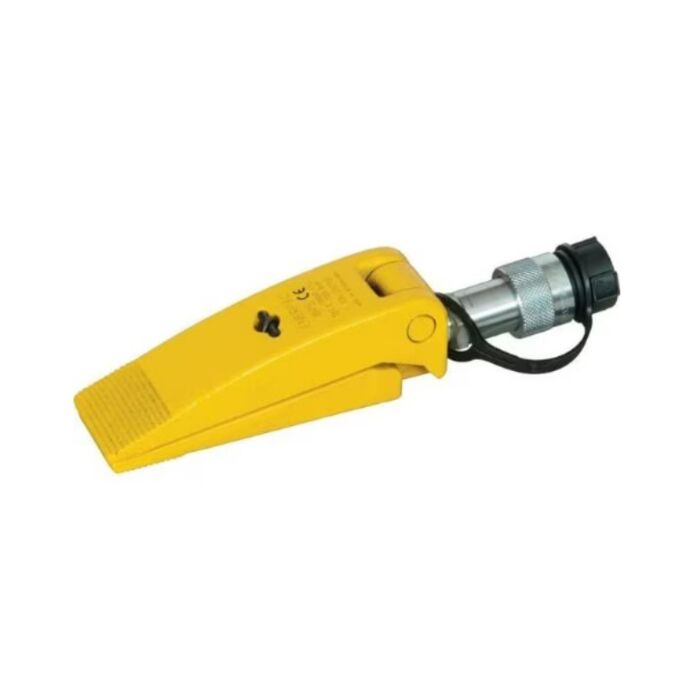

Enerpac WR5 1 Ton Hydraulic Spread Cylinder, Single Acting, 3.7" Max Spread
1 Ton Hydraulic Spread Cylinder Single Acting, 3.7" Max Spread
Order #: WR5
Mfg #: 800940
$788.52
Enerpac WR5 1 Ton Hydraulic Spread Cylinder, Single Acting, 3.7" Max Spread
1 Ton Hydraulic Spread Cylinder Single Acting, 3.7" Max Spread
Order #: WR5
Mfg #: 800940
Product Highlights
1.00 Ton, Hydraulic Wedgie and Spread Cylinder, 3.7 in Maximum Spread
When you need a compact hydraulic wedge spreader for tight spaces the WR5 is the optimum choice. This single-acting tool uses powerful hydraulic force to expand up to 3.7" (94mm) and retracts with a spring return system.
Please note that the maximum load capacity is 1-ton (8.9kN), and the maximum system pressure must be limited to half the rated pressure (5000 psi 350 bar)
Maximum Operating Pressure (psi) | 10,000 |
Maximum Spread (in) | 3.7 |
Power Source | Hydraulic |
Spreading Force (imperial tons) | 1 |
Maximum Spreading Force (ton) | 1 |
Maximum Spreading Force (kN) | 8,9 |
Capacity (imperial tons) | 1 |
Tip Clearance (in) | 0.50 |
Weight (lbs) | 5 |
