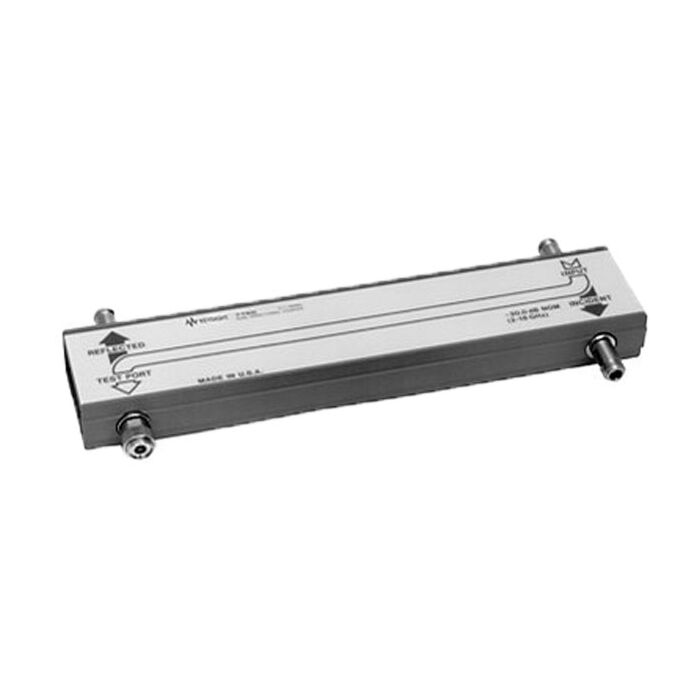

Keysight 772D Coupler, Dual Directional, 2-18GHz
Coupler,Dual Directional 2-18GHz
Order #: 772D
Mfg #: 772D
$12,704.00
Keysight 772D Coupler, Dual Directional, 2-18GHz
Coupler,Dual Directional 2-18GHz
Order #: 772D
Mfg #: 772D
$12,704.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
The Keysight 772D is a high-performance, dual-directional coupler designed for broadband swept measurements in the 2 to 18 GHz range. This coupler can be combined with Keysight power sensors and power meters for reflectometer applications. Forward and reverse power measurements on transmitters, components, or other broadband systems are made simpler using the Keysight 772D. The broadband design allows the use of a single test setup and calibration for tests spanning the entire 2 to 18 GHz range.- Nominal coupling: 20 dB
- Maximum coupling variation: ±1.0 dB
- Directivity: 30 dB to 12.4 GHz, 27 dB to 18 GHz
