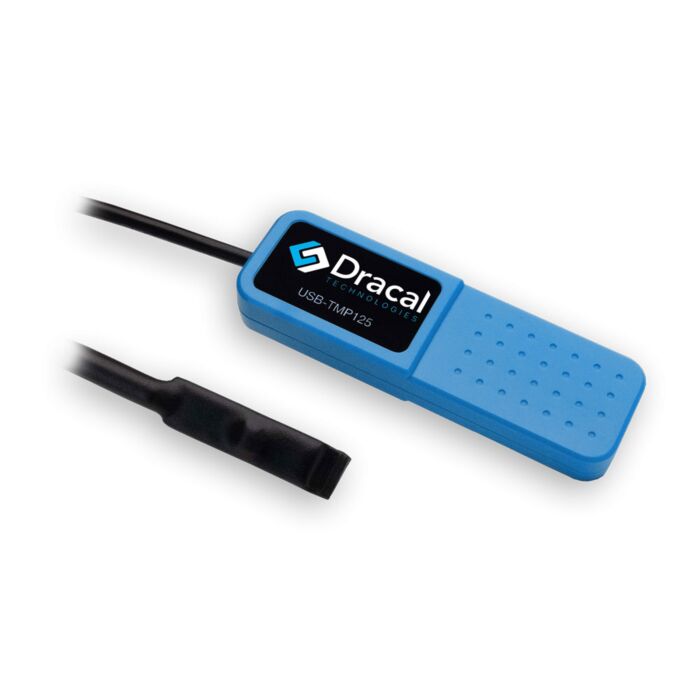

Dracal USB-TMP125-CAL
USB Precision temp sensor calibratable
Order #: USB-TMP125-CAL
Mfg #: 608000
$191.99
Dracal USB-TMP125-CAL
USB Precision temp sensor calibratable
Order #: USB-TMP125-CAL
Mfg #: 608000
$191.99
Availability: Ships in 1-2 weeks
Product Highlights
TMP125: Precision USB ambient temperature sensor with a probe that can operate and read temperatures levels as low as -55°C.
The TMP125 is a low-cost USB ambient temperature sensor based on a precision temperature chip. It can measure temperatures as low as –55°C with an excellent precision and outstanding resolution of 0.06°C. Its sensing probe has a dust, moisture and splash-proof coating. This high level of protection makes it possible to use this unit even in harsh environments.
- Operating range: -55 to +75°C
- Accuracy:
- ±1.0°C (max.) from -10 to +75°C
- ±2.0°C (max.) from -55 to +75°C
- Resolution: 0.5°C
| Channel Id | Description | Type | Nature |
|---|---|---|---|
| 00 | MCP980x I2C Temperature sensor | Temperature | Real |
- Housing temperature range: 0 to +75°C
- Powered by USB
- Operating current: 12 mA
- Weight: 76 g
- Housing: ABS Plastic
- Housing IP rating: N/A
- Cable length: 4 feet on the sensor side, 3 feet on the USB side
- The probe and the cable on the sensor side are splash proof, but the Housing and USB cable are NOT. Use adequate protection.
Virtual COM port communication protocol (option)
This product is available with the option of communication via virtual COM port protocol. Products with this option can be freely converted between USB and VCP communication modes.
Each Unit Includes
- One (1) TMP125 unit
- One (1) USB Cable
- Quick installation guide
- Data acquisition solution for DAQ system
