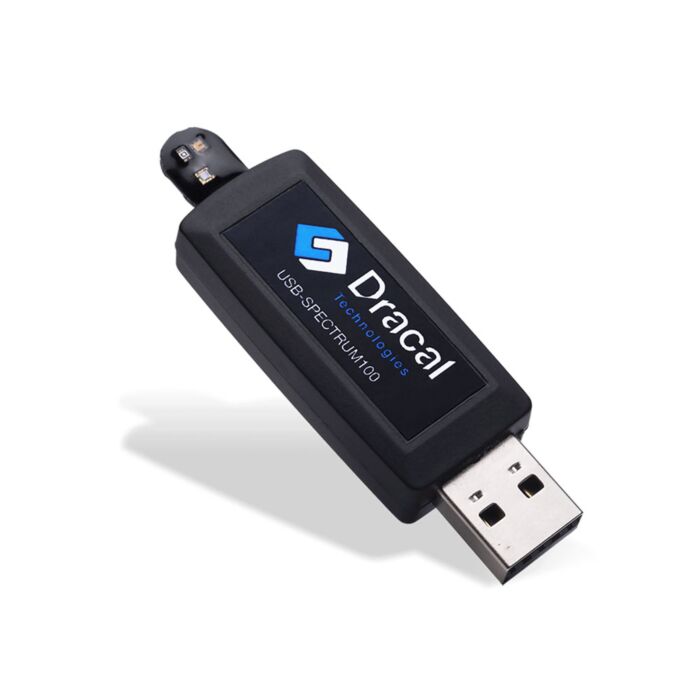

Dracal USB-SPECTRUM100
USB 5-band sensor for UVA, UVB, IR, RGBambiant light

Order #: USB-SPECTRUM100

Mfg #: 601042

Questions about availability or need help? Contact Us:

(800) 633-0561
$284.99

Dracal USB-SPECTRUM100

USB 5-band sensor for UVA, UVB, IR, RGBambiant light

Order #: USB-SPECTRUM100

Mfg #: 601042

New
Loading...
Print Save Item Compare
$284.99
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

SPECTRUM100: USB light sensor simultaneously detecting white light and colors, ultraviolet A and B, infrared and ambient light.

The Spectrum100 is built around three recently introduced and specialized sensors supporting multiple light bands; Ultraviolet (UVA, UVB), ambient (ALS) approximating the human eye response, colour (RGB) as well as infrared (IR). All sensors are both highly sensitive to light and stable in time within their temperature operating range. Furthermore, they are factory compensated for a minimum temperature offset.

  • Specifications
    • Detection range: 0.0072 to 120,000 lx
    • Digital resolution (LSB count): 0.0036 lx/step
    • Dynamic range: 16 bit
    • Flicker noise rejection: 100 Hz and 120 Hz
    • High dynamic detection resolution
    • Dark offset: 3 steps
    • Peak light spectral response: 550 nm
    • Built-in algorithms: Filtron™ and O-Trim™[1]
    • Supports low transmittance (dark) lens design
    • Excellent temperature compensation
    • Sensor IC: Vishay, VEML6030
  • Miscellaneous
    • Communication Interface: USB 2.0
    • Maximum USB cable length: 2 m (6 feet)
    • Operating temperature range: 0°C to 70°C
    • Operating relative humidity range (non-condensing): 10% to 90%
    • Powered through USB
    • Current Consumption: 25 mA max
    • Dimensions (cm): 7L X 2W x 1H
    • Weight (grams): 7.7
    • Colour: Black
    • Waterproof: No

    • Available channels

    (As displayed in our logging software DracalView)

    Channel Id Description Type Nature
    00 IR light intensity IR light intensity Real
    01 Green light intensity Green light intensity Real
    02 Blue light intensity Blue light intensity Real
    03 Red light intensity Red light intensity Real
    04 VEML6075 UVA UVA Real
    05 VEML6075 UVB UVB Real
    06 VEML6030 ALS Ambient light Real
    07 VEML6030 WHITE White light Real

    Each Unit Includes

    • One (1) Spectrum100 unit
    • Quick installation guide
    • Data acquisition solution for DAQ system
