MadgeTech SHOCK300
Order #: SHOCK300
Mfg #: 902167-00
Product Highlights

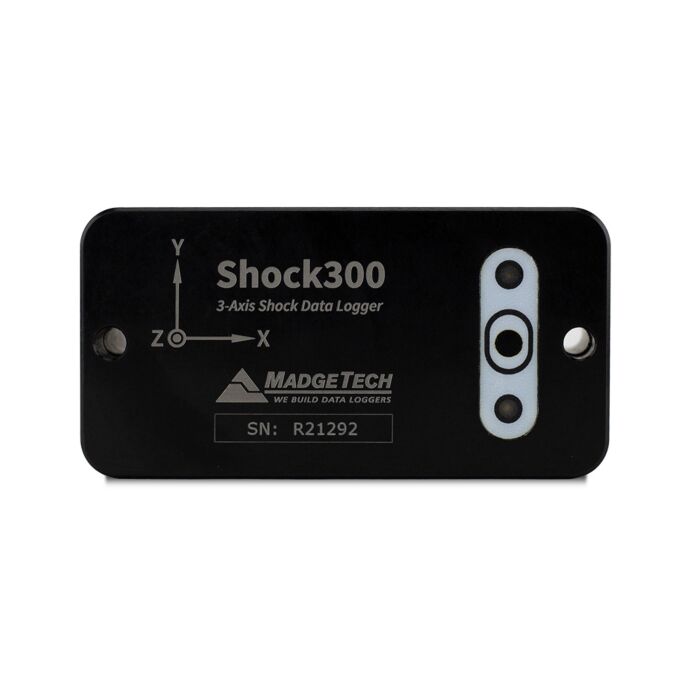

Tri-Axial Shock Data Logger with Three Built-In Acceleration Ranges
The Shock300 is a tri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges. Includes declaration of conformance.
- Three programmable acceleration ranges to choose from: ±15 g, ±100 g and ±300 g
- >4M readings of non-volatile memory
- 1kHz sampling rate
- Rechargeable Battery with three month battery life on single charge
- Direct USB interface connection
The Shock300 is a tri-axial shock data logger specifically designed for documenting dynamic environments.
This device provides not one, but three acceleration ranges to choose from: ±15 g, ±100 g and ±300 g. The ranges are implemented on separate low-g and high-g accelerometers for excellent resolution and accuracy. Compact and lightweight, the Shock300 can measure and record up to 4,192,254 readings and is equipped with a rechargeable battery for convenience.
The Shock300 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 4,192,254 readings (1,397,418 per channel, all channels in use) |
| Reading Rate | 90 days typical at 64Hz rate |
| Dimensions | 3.4 in x 1.7 in x 1.3 in (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20
|
