MadgeTech LNDS
Order #: LNDS
Mfg #: 900349-00
Product Highlights

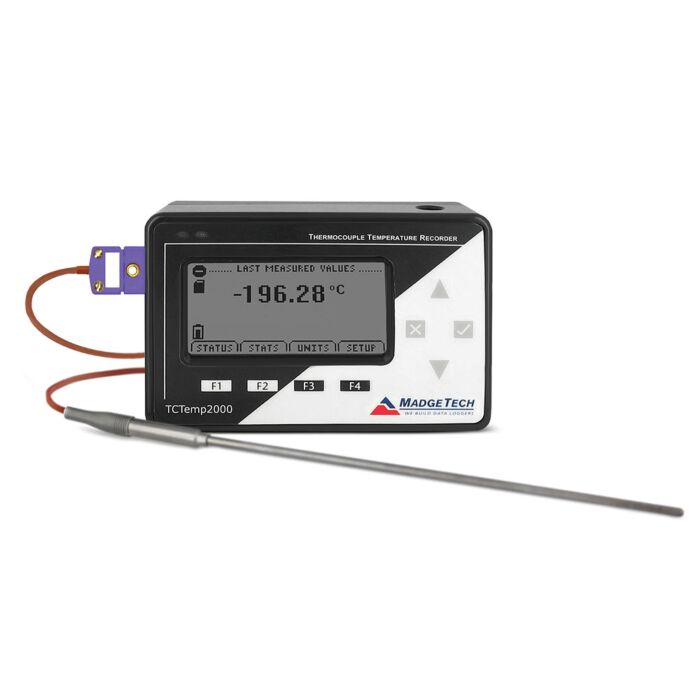

Liquid Nitrogen Data Logging System
The LNDS is a data logging system for ultra-low temperature monitoring. Includes ISO/IEC 17025 Accredited Certificate.
- TCTemp2000 Temperature Data Logger
- Type E Thermocouple
- 9-Volt AC Power Adapter
The LNDS is an ultra-low temperature measurement system created specifically for monitoring temperature-sensitive materials that need to be preserved at cryogenic temperatures. The probe sheath can record temperatures as low as -200 °C (-328 °F) and are available in a variety of sizes.
Equipped with an LCD screen, the LNDS provides users with the ability to view the current reading, minimum, maximum and average statistics, all in real-time. This device can store 131,071 readings per channel and it's non-volatile memory provides maximum data security even if AC and battery power are lost.
The LNDS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 131,071 readings (all channels enabled) |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic, based on internal channel |
| Battery Life | 1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available. |
| Material | Black anodized aluminum |
| Dimensions | 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 (recommended) or IFC110 |
| Approvals | CE |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) |
| Remote Channel Temperature Sensor | Type E Thermocouple (included) |
| Remote Channel Temperature Range | -200 °C to +260 °C (-328 °F to +500 °F) |
| Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±1.0 °C (-200
|
