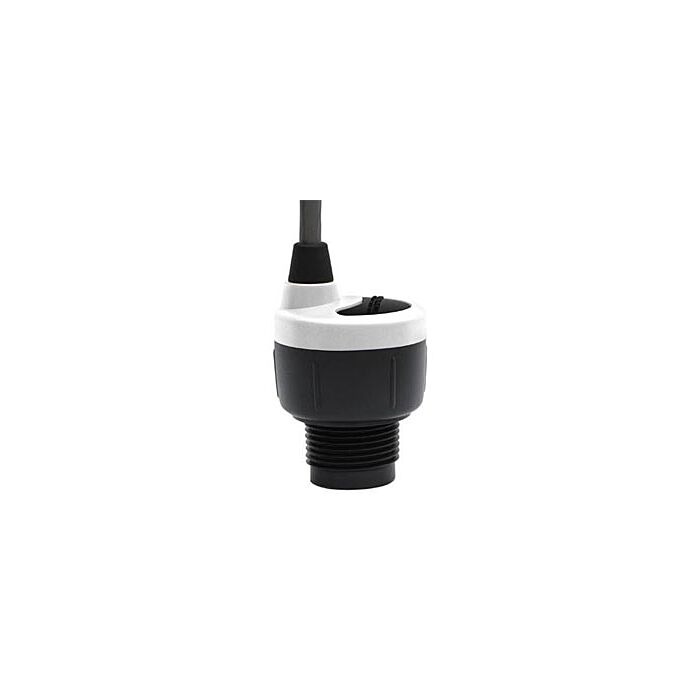

Flowline DL10-01

Product Highlights

• Continuous non-contact level measurement up to 49.2" (1.25m)
• 4-20 mA output for longer signal distances up to 1000' (300m)
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2" beam width and short 2" dead band optimized for small tanks
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement
• Range: 49.2" (1.25m)
• Accuracy: 0.125" (3mm)
• Resolution: 0.019" (0.5mm)
• Dead band: 2" (5cm)
• Beam width: 2" (5cm)
• Configuration: WebCal® PC Windows® USB 2.0 USB 2.0
• Memory: Non-volatile
• Supply voltage: 24 VDC (loop)
• Consumption: 0.5W
• Loop resist.: 400O max
• Signal output: 4-20 mA, two-wire
• Signal invert: 4-20 mA or 20-4 mA
• Signal fail-safe: 4 mA, 20 mA, 21 mA,
• 22 mA or hold last
• Process temp.: F: 20° to 140°
• C: -7° to 60°
• Temp. comp.: Automatic
• Ambient temp.: F: -31° to 140°
• C: -35° to 60°
• Pressure: MWP = 30 PSI (2 bar)
• Enclosure rating: Type 6P, encapsulated,
• corrosion resistant & submersible
• Encl. material: Polycarbonate
• Strain relief mat.: Santoprene
• Trans. material: PVDF
• Cable jacket mat.: Polyurethane
• Cable type: 4-conductor, shielded
• Cable length: 48" (1.2m)
• Process mount: 1" NPT (1" G)
• Mount gasket: Viton®
• Classification: General purpose
• Compliance: CE, RoHS
• Approvals: cFMus
