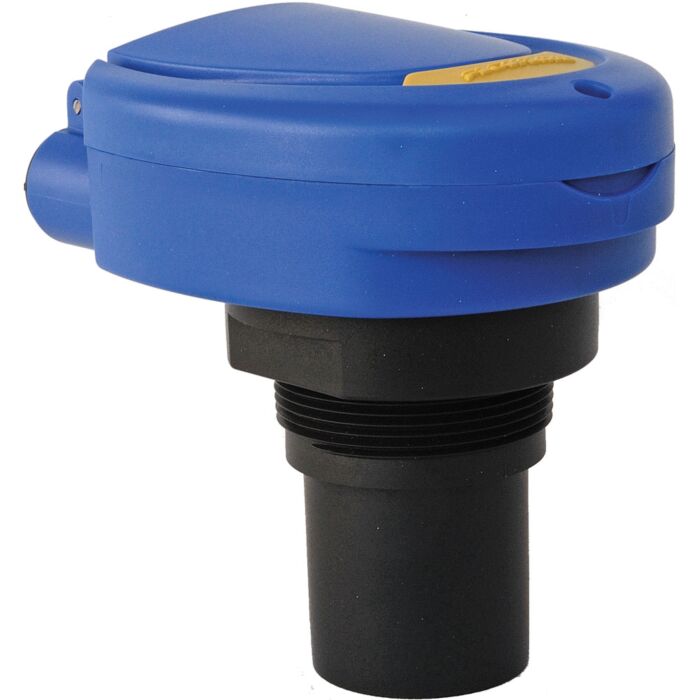

Flowline LU78-5004

Product Highlights

• Configuration is simple via integral push button display module
• Three (3) programmable relays for switch, pump control and fail-safety
• Narrow 3” beam width for applications with limited measurement space
• Short 8” dead band maximizes the measurable filling capacity of the tank
• PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids
• Range: 8" to 18.0' (20cm to 5.5m)
• Repeatability:
• Loop Output: 0.25" (6.35mm)
• Isolated, Sinking 12 to 28 VDC
• Dead band: 8" (20cm)
• Beam width: 3" (7.6cm)
• Configuration: Push button
• Memory: Non-volatile
• Display type: LCD, 6-digit
• Display units: Inch, cm, percent, feet or meter
• LCD indication: Level and relay status
• Supply voltage: 95-250 VAC
• Power: 20 watts @ 120 VAC
• Contact type: Relay 1, SPDT , Relay 2 & 3 SPST NO All Commons Connected Together
• Contact rating: 2A, 30 VDC 60W(DC), 125 VA, 220 VDC, 250 VAC
• Contact fail-safe: Programmable
• Process temp.: F: -4° to 140° /C: -20° to 60°
• Temp. comp.: Automatic
• Ambient temp.: F: -40° to 140°/C: -40° to 60°
• Pressure: MWP = 30 PSI (2 bar)
• Enclosure rating: NEMA 4X (IP65)
• Encl. material: Polycarbonate
• Encl. hardware: Brass & stainless
• Enclosure vent: Water tight membrane
• Trans. material: PVDF
• Conduit entrance: Dual, 1/2" NPT
• Process mount: 2" NPT (2" G)
• Mount gasket: Viton®
• Classification: General purpose
• Compliance: CE, RoHS

Each Unit Includes

• Ultrasonic Level Switch
• Quickstart Guide
