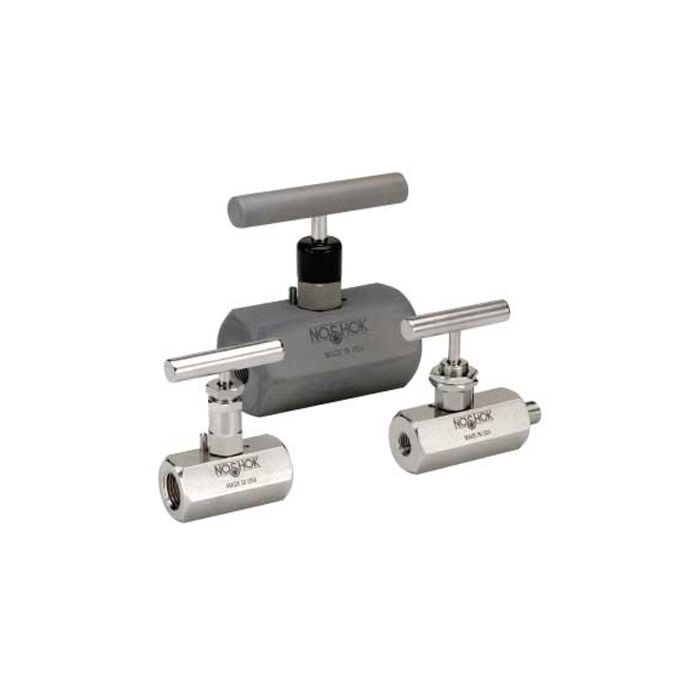

NOSHOK 402-MFAC

1/4nptM -1/4nptF Hard Seat Angle Needle Valve, STL

Order #: 402-MFAC

Mfg #: 402-MFAC

Special Price $130.75 Regular Price $136.20

Availability: Ships in 3-4 weeks

100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
10,000 psi pressure rating @ 200 °F
Blow-out proof stem provides a secondary stem seal in the full open position
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil® packing optional (certain NPT sizes only)
All stems are 316 stainless steel
All stem threads are rolled for strength and ease of operation
One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
Slotted spring pin to prevent accidental loosening
Vinyl dust cap for bonnet and stem (non-packing)

Noshok 400 Series Needle Valve Datasheet
