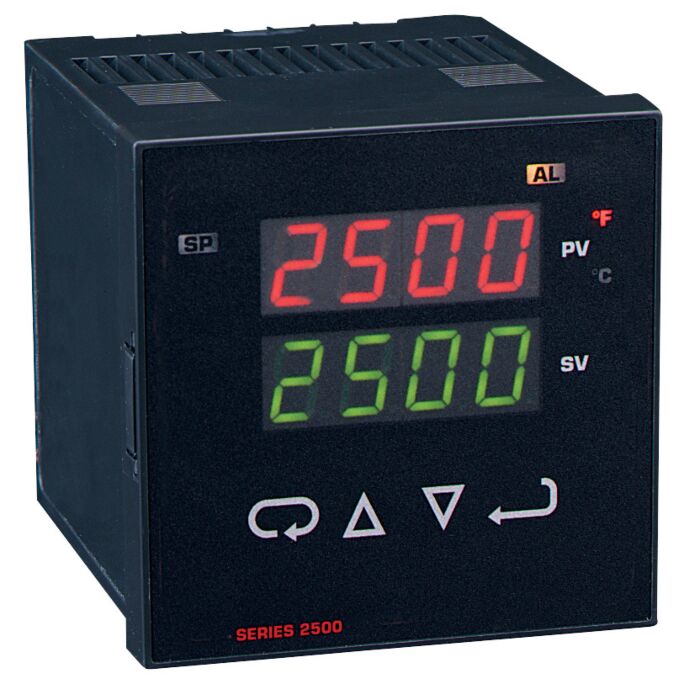

The Series 2500 Temperature Control provides an impressive array of features in an economical 1/4 DIN package. Features include on-off, time proportioning, proportional, PI, PD, or full PID control, programmable from the front panel, or use Self-Tune PID. Input types are selectable from a variety of thermocouple types (J, K, T, E, N, or L) or DIN, NIST, or Ni RTD's. Outputs include solid state relay, mechanical relay, 5 VDC (ideal for driving an external SSR), or isolated 4-20 mA proportional current. Programmable alarm can act as high or low or high/low guard band alarm. A water and corrosion resistant front panel (NEMA 4X; IP65), input fault timer, digital input filter, Self-Tune ramp to setpoint, four password protected security levels, and °F or °C display selection are all standard. Entire electronics package is field replaceable without wiring changes thanks to removable front panel.
Product Highlights
- Input: RTD
- Output: 5 VDC
- Alarm: No
- Inputs: Thermocouple or RTD
- Input Impedance:Thermocouple = 3 megohms minimum, RTD current = 200µA maximum
- Display: Two 4-digit, 7 segment, 0.56" high LED
- Resolution: 1 degree or 0.1 degree
- Accuracy: ±0.25% of span, ±1 degree
- Supply Voltage: 100-240 VAC nominal, ±10%, 50-400 Hz, single phase; 132-240 VDC nominal, ±10%
- Power Consumption: 5 VA maximum
- Operating Temperature: 14 to 131°F (-10 to 55°C)
- Memory Backup: Non-volatile memory - no batteries required
- Control Output Ratings: SSR: 2.5A @ 240 VAC resistive at 77°F (25°C), de-rates to 1.25A @ 130°F 55°C); Relay: SPDT, 10 A @ 240 VAC resistive; Switched Voltage (non-isolated) 5 VDC @ 20 mA; Proportional Isolated Current: 0-20 mA, selectable, into 600 Ohms maximum
- Control Action: Selectable for reverse (usually heating) or direct (usually cooling)
- Ramp: One ramp time adjustable from 0-100 hours
- Isolation :Relay and SSR outputs; 1500 VAC. 0-20 mA output; 500 VAC. 5 VDC output is not isolated
- Weight: 13 oz (369 g)
- Front Panel Rating: NEMA 4X (IP65)
