NOSHOK 152-MFS

150 Series 1/4" NPTM-1/4" NPTF Stainless Soft Seat mini-Valve

Order #: 152-MFS

Mfg #: 152-MFS

Special Price $146.40 Regular Price $152.50

Availability: Ships in 3-4 weeks

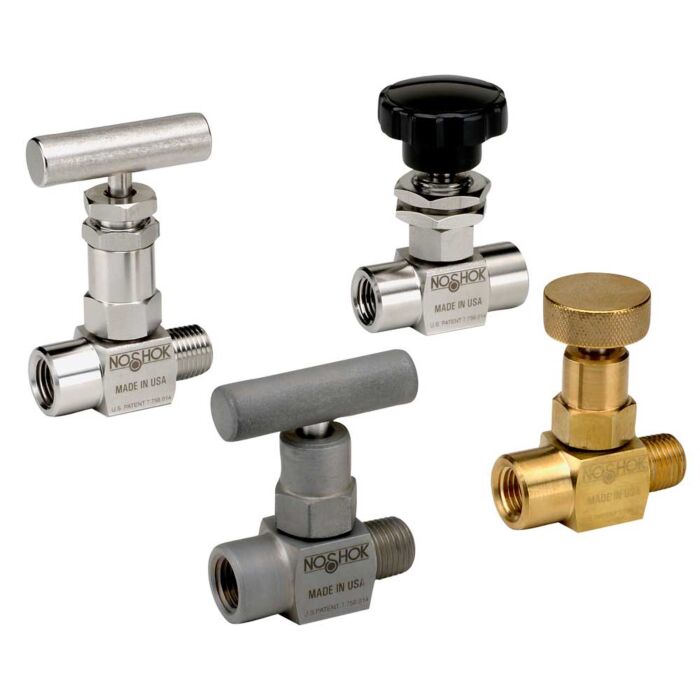

1/4" NPT M - F 316SS Soft Tip Mini Valve
Compact size valve built for maximum durability and robust performance in the toughest applications
100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
Maximum pressure of 6,000 PSI
Available in zinc-nickel plated steel, electropolished stainless steel, and brass
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional
All stems are 316 stainless steel
All stem threads are rolled for strength and ease of operation
Patented body-to-bonnet, metal-to-metal seal is designed to significantly
increase the pressure range of the valve (U.S. Patent 7,758,014)
