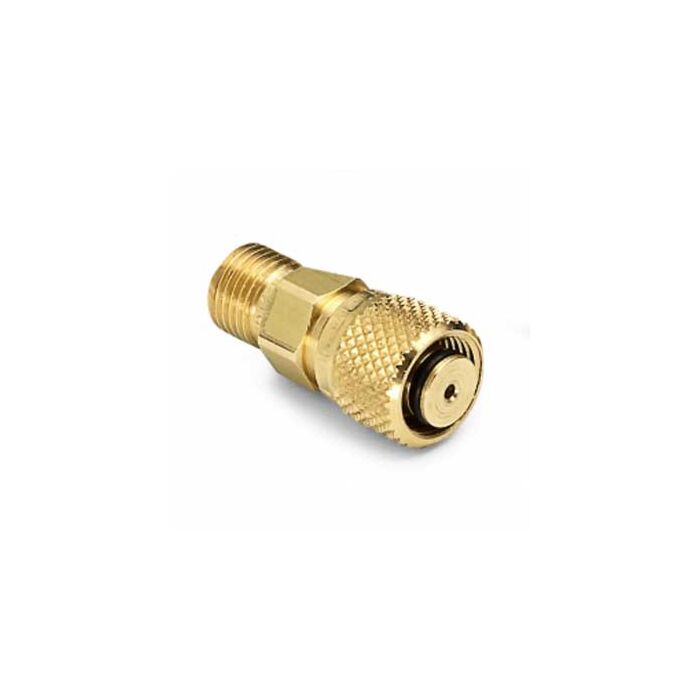

Ralston Instruments QTHA-3TB0 3/8" Tube Fitting, x Male Quick

3/8" Tube Fitting, x Male Quick

Order #: QTHA-3TB0

Mfg #: QTHA-3TB0

$28.85

Availability:

In stock

Make a bubble-tight connection to any Swagelok, Parker, Hoke, Gyrolok or equivalent fractional tube fitting by hand
Pressure Range 0 to 5000 psi (0 to 345 bar)
Weight: 1.6 oz / 45 grams
Length: 1.53 in / 39 mm
Width: 0.72 in / 19 mm
Height: 0.72 in / 19 mm
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Seal Materials: Buna-N
End 1 Connector: 3/8" Male Tube Fitting
End 1 Quick Disconnect: Yes
End 1 Direction: Left
End 2 Connector: Male Quick-test
End 2 Direction: Left

Ralston Instruments QTHA-3TB0 Datasheet
