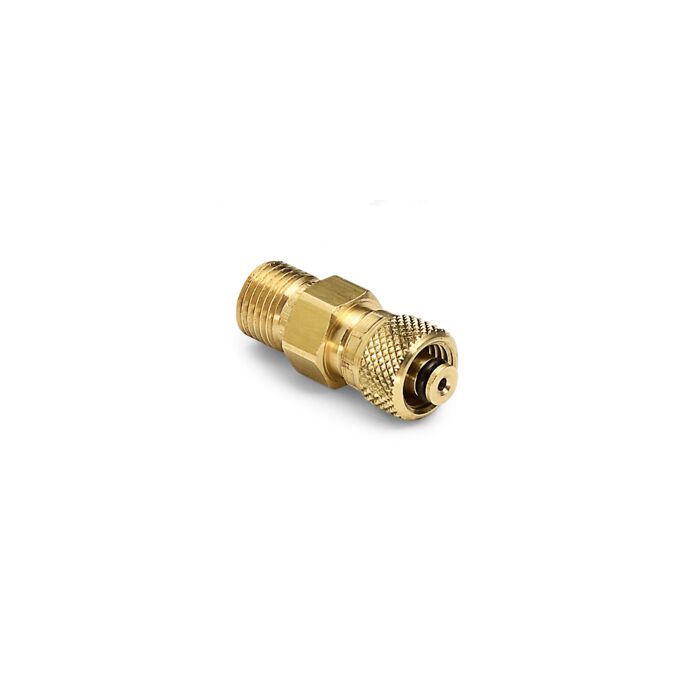

Ralston Instruments QTHA-2TB0 1/4" Tube Adapter for Quick-Test Hose, Brass

1/4" Tube Adapter for Quick-Test Hose,Brass

Order #: QTHA-2TB0

Mfg #: QTHA-2TB0

Questions about availability or need help? Contact Us:

Special Price $25.74 Regular Price $25.75

Qty

Ralston Instruments QTHA-2TB0 1/4" Tube Adapter for Quick-Test Hose, Brass

1/4" Tube Adapter for Quick-Test Hose,Brass

Order #: QTHA-2TB0

Mfg #: QTHA-2TB0

Special Price $25.74 Regular Price $25.75

Availability:

In stock

Make a bubble-tight connection to any Swagelok, Parker, Hoke, SSP, Tylok or equivalent tube fitting without a wrench
An excellent solution for connecting to tube fittings for pressure calibration, gas sampling, pressure reading and testing
A unique design that seals on an o-ring to prevent damage to a tube fitting
Make and remake hundreds of times without over-tightening a tube fitting
Made in USA
Weight: 1.17 oz / 33 grams
Length: 1.47 in / 38 mm
Width: 0.56 in / 15 mm
Height: 0.56 in / 15 mm
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Seal Materials: Buna-N
End 1 Connector: 1/4" Male Tube Fitting
End 1 Quick Disconnect: Yes
End 1 Direction: Left
End 2 Connector: Male Quick-test
End 2 Direction: Left

Ralston Instruments QTHA-2TB0 Datasheet
