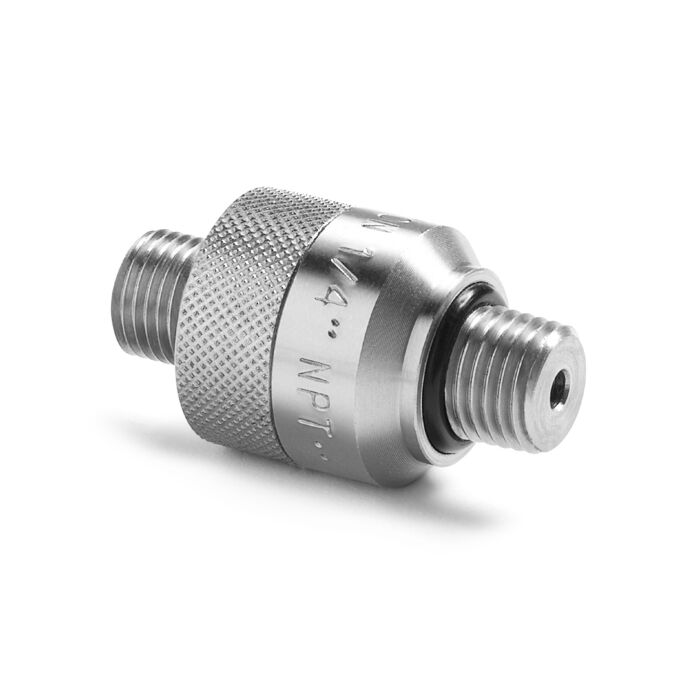

Ralston Instruments QTHA-2MS0-QD 1/4" Male NPT QD (Quick-connect) Adapter, Stainless Steel

Product Highlights

• A unique design allows connection to standard female NPT ports using a pressure-assisted o-ring seal
• Pressure helps to seal the fitting better
• Stainless steel construction
• Made in USA
• Weight: 3.55 oz / 100 grams
• Length: 1.88 in / 48 mm
• Width: 1 in / 26 mm
• Height: 1 in / 26 mm
• Burst Pressure: 20000 PSI / 1380 bar / 140 MPa
• Materials: Stainless Steel
• Max Operating Temperature: 225 °F / 105 °C
• Max Pressure: 5000 PSI / 350 bar / 35 MPa
• Seal Materials: Buna-N, Teflon
• End 1 Connector: 1/4" Male NPT (ASME B1.20.1)
• End 1 Quick Disconnect: Yes
• End 1 Direction: Left
• End 2 Connector: Male Quick-test
• End 2 Direction: Left
