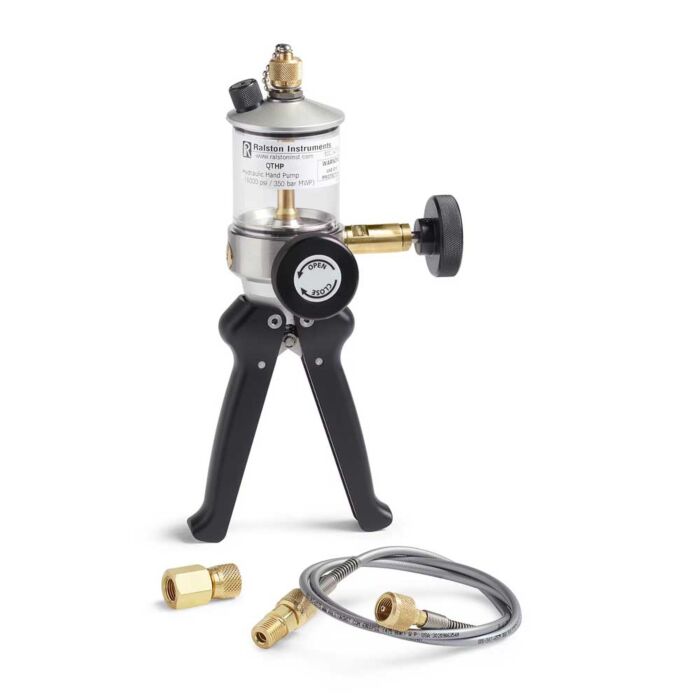

Ralston Instruments QTHP 5000PSI/35mPa Hydraulic Hand Pump, 1/4" NPTM, 3' Hose
5000PSI/35mPa Hydraulic Hand Pump,1/4"NPTM,3ft.Hose

Order #: QTHP-2MBA

Mfg #: QTHP-2MBA

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,522.81 Regular Price $1,522.82

Ralston Instruments QTHP 5000PSI/35mPa Hydraulic Hand Pump, 1/4" NPTM, 3' Hose

5000PSI/35mPa Hydraulic Hand Pump,1/4"NPTM,3ft.Hose

Order #: QTHP-2MBA

Mfg #: QTHP-2MBA

Special Price $1,522.81 Regular Price $1,522.82
Availability:
In stock
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

  • Lightweight and easy to use - weighs only 1.4 kg, and with the pressurized section located below the reservoir, it’s well balanced and easy to hold and pump with one hand
  • Extremely durable - the liquid reservoir is highly resistant to shock, extreme temperature and chemical exposure, and it’s far less prone to shattering. Sturdy metal handles won’t wear out or break when dropped
  • Easy to disassemble and repair with standard hand tools
  • Machined from solid, stainless steel preventing pressure leaks common in housings made from cast material and ensuring consistent, stable pressure
  • Includes Ralston Quick-test adapters and hoses for quick & efficient connection
  • Compatible with most liquids
  • Pump comes fitted with a fill plug with over-pressure relief for easy set up.
  • Made in the USA
  • Hand Pump QTHP Hydraulic Hand Pump
  • Reference Connection: 1/4" male NPT x female Quick-test, no check-valve, brass
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
  • Bottle: Bottle with flip top for Hydraulic pump fluid, empty

Each Unit Includes

  • 1/4" male NPT x female Quick-test, no check-valve, brass Reference Connection QTHA-2MBA
  • 1/4" male NPT x male Quick-test, no check-valve, brass Process Connection QTHA-2MB0
  • Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long Hose QTQT-HOS-3ft
  • Bottle with flip top for Hydraulic pump fluid, empty Bottle QTHP-BOTL
