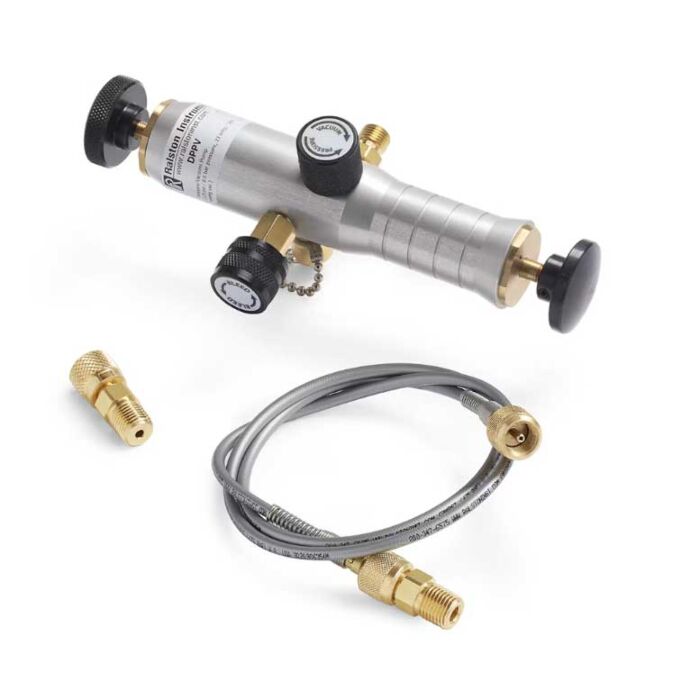

Ralston Instruments DPPV-2MBA DPPV (+125PSI to -23inHg) Pump 1/4" NPTM Gauge Adapter, 3' Hose

Product Highlights

• Generate either 125 PSI (8.6 bar) pressure or 23 InHg (584 mm Hg) vacuum with the same pump
• Unique design allows the user to convert from pressure to vacuum by simply twisting a knob, even with gloves on
• Two outlet ports allow connection to reference pressure gauge or pressure calibrator as well as device under test, thus eliminating a tee
• Large volume fine adjustment piston provides precise control, even at very low pressures
• Precisely vent pressure with soft seated bleed valve
• Made in U.S.A.
• Country of origin: USA
• Pressure Reference: None
• Process Connection: 1/4" Male NPT
• Reference Connection: 1/4" Male NPT
• Max Pressure: 125 PSI / 8.6 bar / 860 kPa
• Max Vacuum: -23 InHg / -77.9 kPa
• Materials: Anodized Aluminum, Brass, Stainless Steel
• Seal Materials: Buna-N, Delrin, Teflon
• Min Operating Temperature: 0 °F / -18 °C
• Max Operating Temperature: 130 °F / 54 °C
• Hand Pump DPPV
  • Piston Displacement: 1.25 Cu In
  • Max Pressure: 125 PSI / 8.6 bar / 860 kPa
  • Max Vacuum: -23 InHg / -77.9 kPa
  • Min Operating Temperature: 0 °F / -18 °C
  • Max Operating Temperature: 130 °F / 54 °C
  • Pressure Media: Air
  • Burst Pressure: 1000 PSI / 70 bar / 7.00 MPa
  • Harmonized Code: 8414.10.0000
  • Materials: Anodized Aluminum, Brass, Stainless Steel
  • Media Compatibility: Air, Inert Gas, Natural Gas
  • Outlet Port: Male Quick-test, Male Quick-test with cap and chain
  • Seal Materials: Buna-N, Delrin
  • Country of origin: USA
  • Fine Adjustment Resolution: 0.01 psi / 70 Pa
• Reference Connection QTHA-2MBA
  • Country of origin: USA
  Materials: Brass
  • Max Operating Temperature: 225 °F / 105 °C
  • Max Pressure: 5000 PSI / 350 bar / 35 MPa
  • Max Vacuum: 0 InHg / 0.0 kPa
  • Wrench Size: 9/16 In / 15 mm
  • Wrench Size: 15 mm / 9/16 in
  • End 1 Connector: 1/4" Male NPT (ASME B1.20.1) Detail
  • End 1 Direction: Left
  • End 2 Connector: Female Quick-test Detail
  • End 2 Direction: Left
  • Process Connection QTHA-2MB0
    • Burst Pressure: 20000 PSI / 1380 bar / 140 MPa
    Country of origin: USA
    • Materials: Brass
    Max Operating Temperature: 225 °F / 105 °C
    • Max Pressure: 5000 PSI / 350 bar / 35 MPa
    • Max Vacuum: 0 InHg / 0.0 kPa
    • Min Operating Temperature: 0 °F / -18 °C
    • Seal Materials: Buna-N
    • Wrench Size: 9/16 In / 15 mm
    • Wrench Size: 15 mm / 9/16 in
    • End 1 Connector: 1/4" Male NPT (ASME B1.20.1) Detail
    • End 1 Direction: Left
    • End 2 Connector: Male Quick-test Detail
    • End 2 Direction: Left
    • Hose QTQT-HOS-3ft
      • Burst Pressure: 27000 PSI / 1860 bar / 185 MPa
      Color: Silver
      • Country of origin: USA
      • Fluid Media: Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
      • Hose Length: 3ft / 0.91 m
      • Inner Diameter: 0.08 In / 3.00 mm
      • Length: 3 ft / 92 cm
      • Materials: Brass
      • Max Operating Temperature: 140 °F / 60 °C
      • Max Pressure: 6900 PSI / 475 bar / 48 MPa
      • Max Vacuum: -30 InHg / -101.6 kPa
      • Media Compatibility: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
      • Min Operating Temperature: -40 °F / -40 °C
      • Minimum Bend Radius: 1 In / 26 mm
      • Outer Diameter: 0.2 In / 6.00 mm
      • Type: QT
      • Hose End 1: Female Quick-test, brass Female Quick-test Detail
      • Hose End 2: Female Quick-test, brass
      • Hose End 2: Female Quick-test, brass

      Each Unit Includes

      • 1/4" male NPT x female Quick-test, no check-valve, brass QTHA-2MBA
      • 1/4" male NPT x male Quick-test, no check-valve, brass QTHA-2MB0
      • Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long QTQT-HOS-3ft
