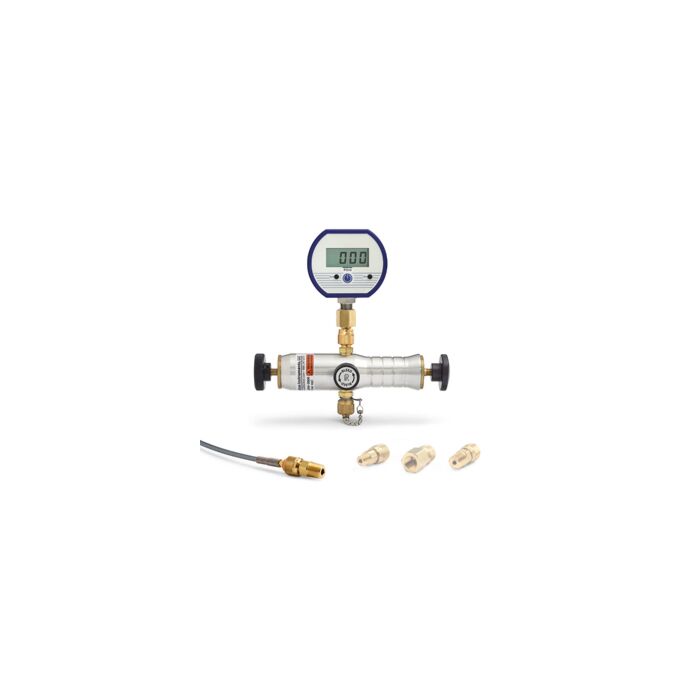

Ralston Instruments DP0V-30PSIG-D Pneumatic Calibrator Kit

Product Highlights

• Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations
• Light weight, compact pump generates up to 125 psi (8.6 bar) with ease
• Large volume fine adjustment piston provides precise control, even at very low pressures
• Modular design makes field maintenance quick and easy
• Precisely vent pressure with soft seated bleed valve
• Two outlet ports provide connections for both pressure reference and for device under test thus eliminating a tee
• Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
• Rugged, all metal construction reduces pressure changes due to temperature fluctuations
• Made in U.S.A.

Each Unit Includes

• Hand Pump - DP0V Assembly (DP0V)
• Gauge - 0-30 psig Digital Pressure Gauge (±0.25% full scale accuracy) (GAUD-0030)
• Gauge Adapter - 1/4" female NPT x female Quick-test, no check-valve, brass (QTHA-2FBA)
• Hose - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
• Hose Adapter - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
