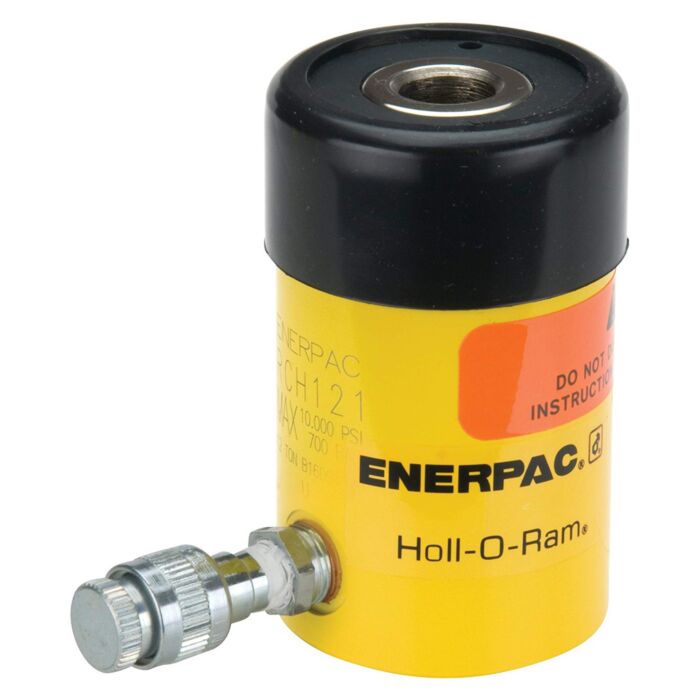

Enerpac RCH123 30259 12-Ton Hydraulic Cylinder
30259 12-Ton Hydraulic Cylinder
Order #: RCH-123
Mfg #: RCH123
$1,839.60
Enerpac RCH123 30259 12-Ton Hydraulic Cylinder
30259 12-Ton Hydraulic Cylinder
Order #: RCH-123
Mfg #: RCH123
Product Highlights
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
| Cylinder capacity | 12 tons (13.8 maximum) |
| Stroke length | 3.00 inches |
| Effective area | 2.76 square inches |
| Oil capacity | 8.29 cubic inches |
| Cylinder bore diameter | 2.13 inches |
| Collapsed height | 7.25 inches |
| Extended height | 10.25 inches |
| Outside diameter | 2.75 inches |
| Center hole diameter | 0.77 inches |
| Port size | 1/4" NPTF |
| Weight | 9.8 lb. |
