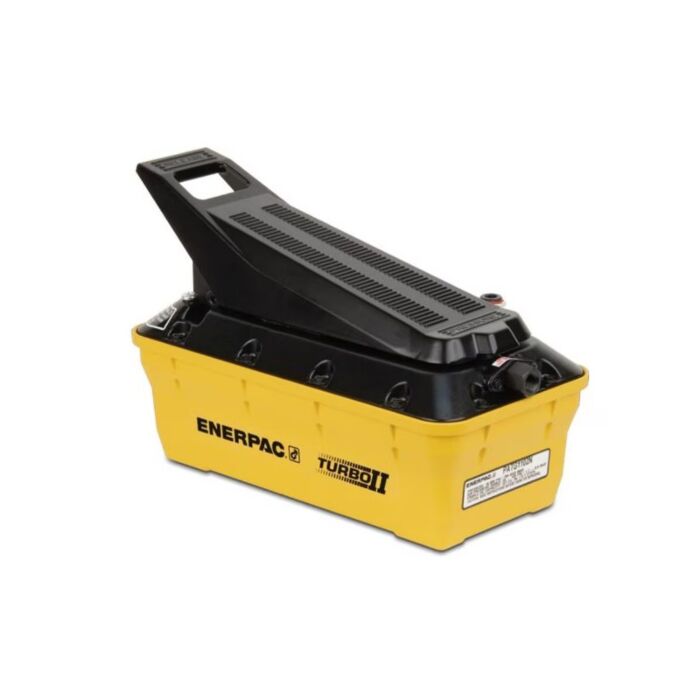

Enerpac PATG1102N Turbo II Air Hydraulic Pump

Product Highlights

Enerpac Turbo II Air Over Hydraulic Pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.

Turbo II Air-Hydraulic Pumps suit medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.

Choose from a range with maximum working pressure of either 5,000 or 10,000psi, and various reservoir capacities from 116 - 462 in3 (2100 - 7500 cm3).

Each PATG pump variant includes a 3-way, 3-position valve for Advance / Hold / Retract functions.

Turbo II Air Over Hydraulic Pump Series:

• PATG - Treadle for foot or hand operation
• PARG - Pendant Operation
• PAMG - Manual lever operated. For double-acting applications
• PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
• PASG - Includes mount for a single DO3 Valve.
