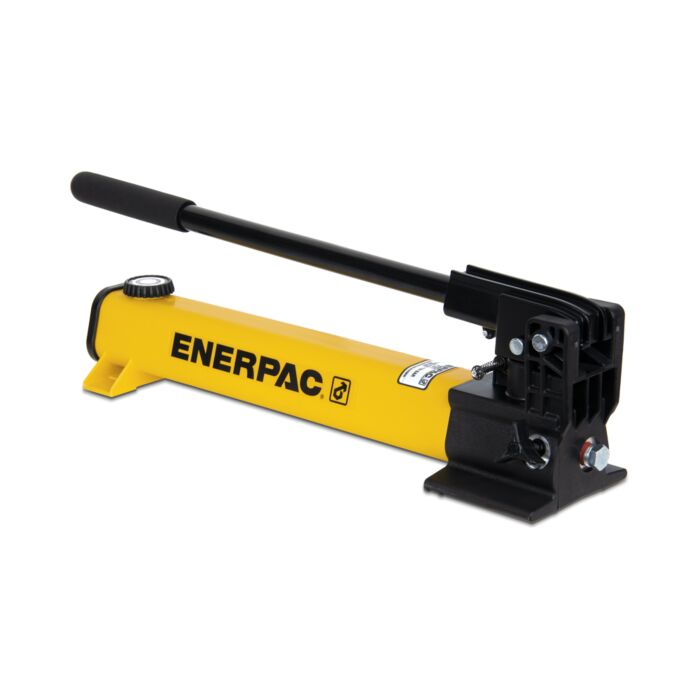

Enerpac P391 Hydraulic Hand Pump Single Speed, 10K PSI
Hydraulic Hand Pump Single Speed,10K PSI

Order #: P-391

Mfg #: P391

Questions about availability or need help? Contact Us:

(800) 633-0561
$904.40

Enerpac P391 Hydraulic Hand Pump Single Speed, 10K PSI

Hydraulic Hand Pump Single Speed,10K PSI

Order #: P-391

Mfg #: P391

$904.40
Availability:
In stock

Product Highlights

Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).

The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.

Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it's needed most before the pump automatically switches to the low flow high-pressure stage.

With a choice of oil capacities up to 453 in3 (7423 cm3), we're certain you'll find a lightweight hydraulic hand pump to handle multiple cylinder hook-ups. For compatibility with double-acting tools choose the P842.

  • Lightweight and compact design
  • Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
  • Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
  • Lower handle effort to minimize operator fatigue
  • Handle lock and lightweight construction for easy carrying
  • Large oil capacities to power a wide range of cylinders or tools
  • Non-conductive fiberglass handle for operator safety
  • Internal pressure relief valve for overload protection
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 10,000
Pressure Rating (psi) 1st Stage 10,000
Pressure Rating (psi) 2nd Stage N/A
Cylinder Compatability Single-acting
Pump Type Single Speed
Reservoir Capacity (in3) 55
Usable Oil Capacity (in3) 55
Maximum Flow at Rated Pressure .151 in3/stroke
Oil Displacement per Stroke (in3) 1st Stage 0.151
Oil Displacement per Stroke (in3) 2nd Stage N/A
Maximum Handle Effort (lbs) 85
Piston Stroke (in) 1
Valve Operation Manual
Power Source Manual
Weight (lbs) 9
